FEATURES
Automatic self-priming system
Simple maintenance limited to checking fluid levels and filters
Liquid bath mechanical seal for dry-running and reduced maintenance costs
Abrasion-resistant silicon carbide seal faces for trouble-free performance

HIGH-VOLUME, MEDIUM-HEAD, LARGE SOLIDS-HANDLING CAPABILITIES FOR LARGE SEWER BYPASS AND DEWATERING JOBS

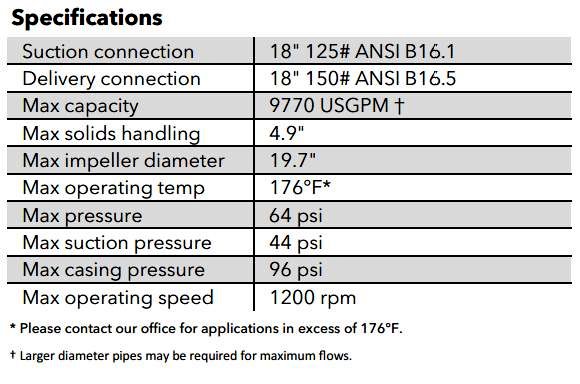

The WE-CD400M pump offers flow rates to 9,770 US GPM (2,231 m³/hr) and has the capability of handling solids up to 4.9 in (1125 mm) in diameter.
The WE-CD400M is able to automatically prime to 28 ft (8.5 m) of suction lift. Automatic or manual starting/stopping available with mounted control panel or optional wireless remote access.
Indefinite dry-running is possible with the exclusive Godwin liquid bath mechanical seal design. Solids handling, dry running and portability make the WE-CD400M the perfect choice for high volume dewatering, sewage bypass, and industrial pumping applications.

AVAILABLE OPTIONS
Diesel engine driven, natural gas engine or electric motor driven
316 or CD4MCu stainless steel pump-end construction for high and low pH applications
Highway trailer or skid mount, both incorporating integral overnight running fuel tanks

Sound attenuated enclosure available
PrimeGuard engine controller with Field Smart Technology (FST)
