-- Melting
Holding Furnace --
|
 |
The continuous melt-holding furnace applying a
dual chamber of fuel or gas type holds the capability to melt and
retain heat. It is a maintaining furnace made of aluminum alloy, which
can utilize the heat to the maximum extent. It can be integrated to work
with the die casting machine of every type, and is easy to install and
simple to operate. |
|
Fuel/Gas Type Continuous
melting holding Furnace
|
|
| |
|
 |
| Features
:: |
 |
The
body of the furnace is made of
flame-resistant, heat-retaining, and heat-resistant
material by brick laying and melt pouring along with its
exterior structure and integration design. |
|
It
can utilize the heat properly and reduce the heat loss, thus
maximizing its capabilities in melting and heat retaining. |
|
Imported
burners and burning devices with automatic temperature control
are applied. High heating speed and
complete combustion will save energy and reduce costs. |
|
The
temperature difference will be controlled within a ± 5 oC range
after setting the temperature of the melting aluminum liquid. |
|
No
additional iron and aluminum.
It is suitable for manufacturing die-casting aluminum parts with
high quality. |
|
The
hot air current generated from combustion will be released at
the top. The temperature outside the feeding entry is thus
lowered, which
can improve the working environment and enhance the working
efficiency. |
|
The
temperature outside the feeding entry is low, so
the damage rate of the automatic ladle will be reduced. |
|
No
crucibles or steel crucibles are used, so the long-term charge
for the replacement of damaged crucibles can be avoided. |
|
Degasing
device can be added to maintain a 0.2-0.3cc content of hydrogen
in the melting aluminum liquid.
Optional automatic feeder is available. |
|
If
the directions of operation are followed correctly and the
cleaning is performed regularly,
the life of the machine will be longer than 4 years. |
|
| |
|
 |
 |

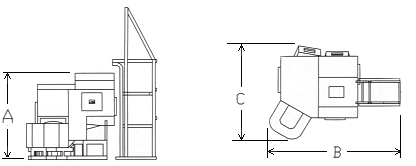

 TSAL-I
|
|
| |
|
| TSAL-I
Specification:: |
|
|
Specification
|
保持容量
( Kg )
|
熔解量
( Kg/h)
|
燃燒器容量
|
取湯口尺寸
(mm)
|
外型尺寸( mm )
|
適用壓鑄機
|
|
熔解室燃燒器
( Kcal/h )
|
保溫室燃燒器
( Kcal/h )
|
A
|
B
|
C
|
|
TSAL-500I
|
500
|
150
|
12 x 104
|
12 x 104
|
350 x 420
|
2000
|
3000
|
1600
|
250T-350T
|
|
TSAL-750I
|
750
|
200
|
15 x 104
|
15 x 104
|
420 x 450
|
2100
|
3200
|
1650
|
500T-650T
|
|
TSAL-1000I
|
1000
|
300
|
15 x 104
|
15 x 104
|
520 x 600
|
2200
|
3500
|
1750
|
600T-800T
|
|
TSAL-1500I
|
1500
|
450
|
20 x 104
|
20 x 104
|
550 x 650
|
2250
|
3650
|
1800
|
1280T-1650T
|
|
|
|
 |
 |

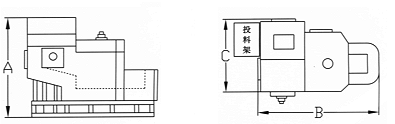

TSAL-II
|
|
| |
|
| TSAL-II
Specification :: |
|
|
規格/機型
|
保持容量
( Kg )
|
熔解量
( Kg/h)
|
燃燒器容量
|
取湯口尺寸
(mm)
|
外型尺寸( mm )
|
適用壓鑄機
|
|
熔解室燃燒器
( Kcal/h )
|
保溫室燃燒器
( Kcal/h )
|
A
|
B
|
C
|
|
TSAL-350II
|
350
|
100
|
8 x 104
|
8 x 104
|
320 x 350
|
2150
|
2810
|
2080
|
125T-250T
|
|
TSAL-500II
|
500
|
150
|
12 x 104
|
12 x 104
|
350 x 420
|
2250
|
2930
|
2210
|
250T-350T
|
|
TSAL-750II
|
750
|
225
|
12 x 104
|
12 x 104
|
420 x 450
|
2390
|
3110
|
2360
|
400T-600T
|
|
TSAL-1000II
|
1000
|
300
|
20 x 104
|
20 x 104
|
520 x 600
|
2600
|
3400
|
2590
|
650T-800T
|
|
TSAL-1500II
|
1500
|
450
|
20 x 104
|
20 x 104
|
550 x 600
|
2300
|
2350
|
2750
|
1000T-1250T
|
|
|
|
 |
 |
TSAL-III
|
|
| |
|
| TSAL-III
Specification :: |
|
|
規格/機型
|
保持容量
( Kg )
|
熔解量
( Kg/h)
|
燃燒器容量
|
取湯口尺寸
(mm)
|
外型尺寸( mm )
|
適用壓鑄機
|
|
熔解室燃燒器
( Kcal/h )
|
保溫室燃燒器
( Kcal/h )
|
A
|
B
|
C
|
|
TSAL-350III
|
350
|
100
|
8 x 104
|
8 x 104
|
320 x 350
|
2000
|
2100
|
2300
|
125T-250T
|
|
TSAL-500III
|
500
|
150
|
12 x 104
|
12 x 104
|
350 x 420
|
2100
|
2100
|
2600
|
250T-350T
|
|
TSAL-650III
|
650
|
200
|
12 x 104
|
12 x 104
|
400 x 450
|
2100
|
2160
|
2700
|
350T-400T
|
|
TSAL-820III
|
820
|
250
|
15 x 104
|
15 x 104
|
420 x 500
|
2200
|
2250
|
2800
|
500T
|
|
TSAL-950III
|
950
|
300
|
15 x 104
|
15 x 104
|
520 x 550
|
2300
|
2350
|
2800
|
650T-800T
|
|
TSAL-1200III
|
1200
|
400
|
20 x 104
|
20 x 104
|
520 x 600
|
2350
|
2400
|
2900
|
650T-800T
|
|
TSAL-1500III
|
1500
|
400
|
20 x 104
|
20 x 104
|
550 x 600
|
2450
|
2450
|
3000
|
1000T-1250T
|
|
|
|
 |
 |
TSAL-III-A
|
|
| |
|
| TSAL-III-A
Specification :: |
|
|
規格/機型
|
熔解量
( Kg/h)
|
燃燒器容量
|
取湯口尺寸
(mm)
|
外型尺寸( mm )
|
適用機型
|
|
熔解室燃燒器
( Kcal/h )
|
保溫室燃燒器
( Kcal/h )
|
A
|
B
|
C
|
|
TSAL-500III-A
|
150
|
12 x 104
|
12 x 104
|
350 x 420
|
2000
|
3000
|
1600
|
250T-350T
|
|
TSAL-750III-A
|
200
|
15 x 104
|
15 x 104
|
420 x 450
|
2100
|
3200
|
1650
|
500T-650T
|
|
TSAL-1000III-A
|
300
|
15 x 104
|
15 x 104
|
520 x 600
|
2200
|
3500
|
1750
|
600T-800T
|
|
TSAL-1500III-A
|
450
|
20 x 104
|
20 x 104
|
550 x 650
|
2250
|
3650
|
1800
|
1200T-1650T
|
|
|
|
 |
TSB
pool type electric heat holding furnace
|
|
| |
|
| Features :: |
|
|
Three
radiative heating methods including silicon
carbon rod, heating tube, and electrical heating filament
for heating the aluminum liquid can be chosen by customers. The
heating efficiency is much higher. |
|
The
pool is made by pouring entirely. No iron added, easy to clean
and long operating life. |
|
Lightly
weighted top of the retainer is easy to perform maintenance,
cleaning, and movement. |
|
Dual
thermal coupling and PID control can achieve temperature control
with an accuracy within ± 5 °C。 |
|
Capacity:
300-2000 kgs. Rating power: 15-45 kW |
|
| |
|
| TSB
Specification:: |
|
|
規格/機型
|
容量
KG/AL
|
功率
( KW )
|
額定溫度
( o
C )
|
|
TSB-350
|
350
|
15
|
850
|
|
TSB-500
|
500
|
21
|
850
|
|
TSB-750
|
750
|
27
|
850
|
|
TSB-1000
|
1000
|
30
|
850
|
|
TSB-1250
|
1250
|
33
|
850
|
|
|
|
 |
 |
High-speed
central melting furnace
|
|
| |
|
| Feature
:: |
|
|
By
utilizing imported special glow discharge burners, the acid
byproducts are avoided and radiative heating capability of the
flame is increased. |
|
Low
loss rate due to burning: the metal has a loss rate lower than
1.5%. |
|
Design
of the furnace is rational and its structure is rigid without
dead corners inside, thus is easy to clean. |
|
Proper
use of recycled heat from smoke to reduce energy loss and
increase heat efficiency higher than 55%. |
|
The
combustion system is advanced and rational, thus smoke is
released under No. 0 on the Ringelmann Smoke Chart.
The temperature of the aluminum is accurately controlled within
±5oC。 |
|
Imported
high-quality flame-resistant materials are used to build the
lining of the furnace, which have a rough operation life more
than 5 years |
|
Different
fuel including diesel, coal gas, natural gas, and liquidized gas
can be used. |
|
Using
automatic feeding device, which is safe and reliable, easy to
operate, and will reduce the labor intensity. |
|
| |
|
| High-speed
central melting furnace Specification :: |
|
規格/機型
|
熔解量
Kg/h
|
燃燒器容量
|
|
|
熔解室燃燒器
MJ/h(Kal/h)
|
保溫 室燃燒器
MJ/h(Kal/h)
|
A
|
B
|
C
|
D
|
|
TSAL-0.5T
|
500
|
836(20 x 104)
|
836(20 x 104)
|
1950
|
4100
|
3660
|
6100
|
|
TSAL- 0.75T
|
750
|
1254(30 x 104)
|
1254(30 x 104)
|
2100
|
4340
|
3960
|
6300
|
|
TSAL-1T
|
1000
|
836 x 2台(20 x 104 x 2台)
|
1672(40 x 104)
|
2220
|
4640
|
4500
|
6300
|
|
TSAL-1.5T
|
1500
|
1254 x 2台(30 x 104 x 2台)
|
2508(60 x 104)
|
2420
|
4840
|
5200
|
6850
|
|
| |
|
|
|
|
