卡車式高空作業車
750
下載產品目錄
作業高度75公尺內機型

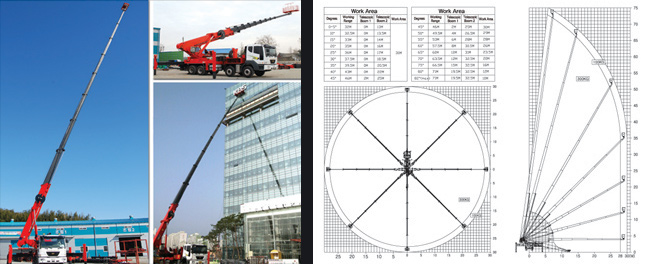

Work Area
| DESCRIPTON | UNIT |
JINWOO 750 |
|
|---|---|---|---|
| Mounting Truck | TON | 19.5ton(short) | |
| Work Load | Freight | kg | 300 (person, included) |
| Vehicle | Total Length | MM | 12,900 |
| Total Height | MM | 3,990 | |
| Total Width | MM | 2,495 | |
| Work Radius | Max. Height | M | 75 |
| Max. Extension | M | 32 | |
| Platform | Basic Size | MM | 1,650*1,100*950 |
| Extended Size | MM | 3,150*1,100*950 | |
| Rotation Angle | degree | 360 | |
| Boom | Type | - | Octagonal |
| Number | - | 10(continuous) | |
| Extension | - | Cylinder, Wire, Chain | |
| Turn Table Rotation | Type | - | Hydraulic |
| Rotation Angle | degree | 360 | |
| Hydraulic Pump Drive | Engine | - |
P.T.O |
| Outrigger | Width | MM |
Front/8000, Rear/8000 |
| Extension | - | Hydraulic | |
| Type | - | V-A TYPE (Patent) | |
| Valve Control | Type | - | Lever |
| Remocon | - | Wireless | |
| Remarks | - | - | - |
