| TECHNICAL DATA | |

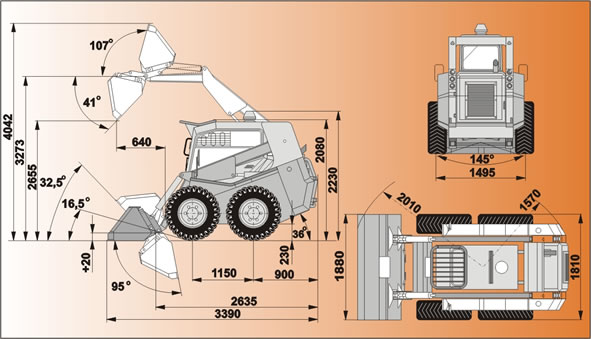

| Height of loader | 2080 mm |
| Lenght of loader with a bucket | 3390 mm |
| Width of loader with a bucket | 1880 mm |
| MASS | |
| Operational mass | 3305 kg |
| Transportation mass | 3225 kg |
| OPERATIONAL PARAMETERS | |
| Operating load | 900 kg |
| Tipping load | 1844 kg |
| Permanent moving speed forward and backward | 15 km.h-1 |
| Bucket volume with the earth | 0,45 m3 |
| Tearing force | 33 kN |
| Max. driving force | 30 kN |
| Operational range | 640 mm |
| MODEL SPEED | |
| Working speed forward and backward | 10 km.h-1 |
| Transportation speed forward and backward | 20 km.h-1 |
| ENGINE | |
| ENGINE | YANMAR 4TNV 98 |
| Nominal power/speed | 52,1 kW/2500.min-1 |
| DRIVE | |
| Model | hydrostatic |
| Regulating hydrogenerator | BOSH-REXROTH |
| Constant hydromotor | BOSH-REXROTH |
| Working pressure not more than | 35 MPa |
| STEERING | |
| Model | hydraulic |
| Working pressure | 2,5 MPa |
| Steering | skid steer |
| HYDRAULIC SYSTEM OF THE OPTIONAL ATTACHMENTS | |
| Hydrogenerator | BOSCH-REXROTH |
| Distributor | BOSCH-REXROTH |
| Working pressure | 18,5 MPa |
| Standard hydraulic flowrate | 112,5 l/min. |
| Compensatory valve | hydraulic |
| NOISE LEVEL | |
| Total level of acoustic performance | 101 dB |
| TIRES | |
| Dimension | 12 x 16,5 |
| ELECTRICAL INSTALATION | |
| Voltage | 12 V |
| Comfortable operator's cabine is equipped by an anti-shock seat |  |
