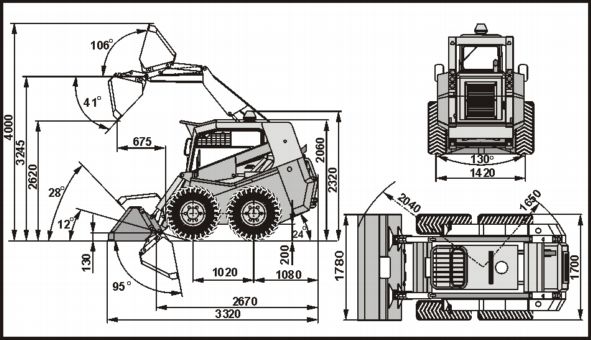

A universal skid-steer loader on a four-wheels chassis.
| TECHNICAL DATA | |
| Height of loader | 2080 mm |
| Length of loader with a bucket | 3320 mm |
| Width of loader with a bucket | 1780 mm |
| MASS | |
| Operation mass | 3236 kg |
| Total mass | 4077 kg |
| OPERATIONAL PARAMETERS | |
| Operating load | 850 kg |
| Tipping load | 1700 kg |
| Permanent moving speed forward and backward | 13 km.h-1 |
| Bucket volume with the earth | 0,45 m3 |
| Tearing force | 28 kN |
| Driving power | 30 kN |
| ENGINE | |
| Type | YANMAR 4TNV94L - NWI |
| Nominal power/speed | 44 kW/2500.min-1 |
| DRIVE | |
| Model | hydrostatic |
| Regulating hydrogenerator | BOSCH-REXROTH |
| Constant hydromotor | BOSCH-REXROTH |
| Working pressure not more than | 35 MPa |
| STEERING | |
| Model | hydraulic |
| Working pressure | 2,5 MPa |
| Steering | skid steer |
| HYDRAULIC SYSTEM OF THE OPTIONAL ATTACHMENTS | |
| Hydro generatorr | BOSCH-REXROTH |
| Distributor | BOSCH-REXROTH |
| Working pressure | 16,5 MPa |
| TIRES | |
| Dimension | 11,5/75 - 15,3 MPT904 |
| NOISE LEVEL | |
| Average noise level of the machine | 78 dB |
| Total level of acoustic performance | 101 dB |
| ELECTRICAL INSTALATION | |
| Voltage | 12 V |
