A
universal skid-steer loader on a four-wheels chassis. When using a wide range of
optional attachments the loader may be used anywhere.
|

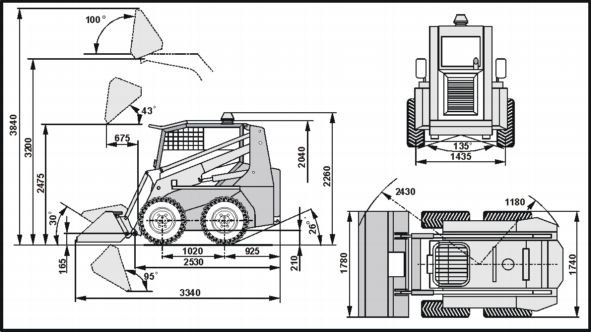

TECHNICAL DATA |
|
|
Height of loader |
2040 mm |
|
Length of loader with a bucket |
3340 mm |
|
Width of loader with a bucket |
1780 mm |
|
MASS |
|
|
Operation mass |
2940 kg |
|
Total mass |
3690 kg |
|
OPERATIONAL PARAMETERS |
|
|
Operating load |
750 kg |
|
Tripping load |
1500 kg |
|
Permanent moving speed forward and backward |
12 km.h-1 |
|
Bucket volume with the earth |
0,45 m3 |
|
Tearing force |
17 kN |
|
Driving power |
27 kN |
|
Working presure not more then |
35 MPa |
|
Working presure |
2,5 MPa |
|
Electrical instalation |
12 V |
|
ENGINE |
|
|
Type |
YANMAR 4TNV94L - NWI |
|
Nominal power / speed |
44 kW/2500.min-1 |
|
DRIVE |
|
|
Model |
hydrostatic |
|
Regulating hydrogenerator |
BOSCH-REXROTH |
|
Constant hydromotor |
BOSCH-REXROTH |
|
HYDRAULIC SYSTEM OF THE OPTIONAL ATTACHMENTS |
|
|
Hydrogenerator |
BOSCH-REXROTH |
|
Distributor |
BOSCH-REXROTH |
|
Working pressure |
16,5 MPa |
|
Standard hydraulic flowrate |
72 l/min |
|
TIRES |
|
|
Dimension |
10,00/75 - 15,3 |
|
NOISE LEVEL |
|
|
Average noise level of the machine LpAeq,T |
75,3 dB |
|
Total level of acoustic performance LWA |
101 dB |
|
|
|
|||
