TECHNICAL CHARACTERISTICS |
• Steel frame 6 mm thick, sturdy contruction

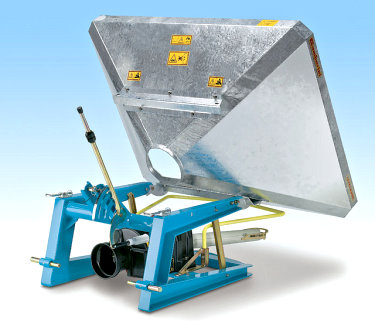

• Rectangular tipping steel hopper, hot galvanized
• AISI 304 stainless steel flow control
• Working width adjustement 4 ÷ 18 mby means a special wrench
supplied
• Long swing arm with fast-lock connection to sweep spreading
• Even distribution
• Filtering grill
• Standard agitator
• 3 points linkage, 1st, 2nd Cat.
• Cardan shaft L = 800 mm with slipping clutch |
|
Code |
Model |
|
S.10.01 |
STD 600 pendulum
fertilizer spreader with long swing arm and tipping hopper |
|
S.10.10 |
STE 800 pendulum
fertilizer spreader with long swing arm and tipping hopper |
|
S.10.20 |
STF 1000 pendulum
fertilizer spreader with long swing arm and tipping hopper |
|
S.10.30 |
STG 1200 pendulum
fertilizer spreader with long swing arm and tipping hopper |
ACCESSORIES ON REQUEST
|
Code |
Description |
|
A.004 |
Agitator for powdered fertilizer |
|
C.010 |
Spreader trolley "Standard Tray" pitch widh 1,35 metre |
|
C.015 |
Spreader trolley "Standard Tray" with adjustable pitch widh
from 1,2 to1,8 m. |
|
C.019 |
Cardan shaft L = 1,4 m. with clutch |
|
F.002 |
Flexible cable L = 2,5 m. for remote control |
|
I.001 |
Hydraulic opening |
|
K.000 |
Lighting kit |
|
R.030 |
N° 3 small wheels for manual handling when dismounted |
|
T.004 |
Rain proof hopper cover |
|
T.010 |
Short plastic swing arm for spreading on both sides |
|
T.011 |
AISI 304 stainless steel swing arm for salt distribution.
Spreading width 2 ÷ 4 m |
|
T.061 |
AISI 304 stainless steel hopper and extended walls. Hot
galvanized frame |
|
Z.024 |
Hot galvanized hopper and frame |
TECHNICAL DATA
|
|
|
Model |
STD 600 |
STE 800 |
STF 1000 |
STG 1200 |
|
Spreading system |
Pendulum tube |
|
Moving machine |
Mounted |
|
Hopper volume |
585 litres |
740 litres |
930 litres |
1140 litres |
|
Application rate |
2,0 he / h |
|
Overall dimensions ( WxLxH ) |
165x125x92 cm. |
165 x125 x100 cm. |
165 x125 x108 cm. |
165 x125 x116 cm. |
|
Machine mass empty |
165 kg |
178 kg |
190 kg |
203 kg |
|
Spreading width |
4 ÷ 18 m. |
|
Minimum power tractor |
60 HP |
65 HP |
70 HP |
80 HP |
|
Cardan shaft revolution |
540 rpm |
|
Suitable fertilizer type |
Chemical granular, powdered, seeds, salt, sand |
|
