化學肥料施肥機

TECHNICAL CHARACTERISTICS

• Tubular steel frame, light and sturdy construction
• Hot galvanized double cone shaped steel hopper constructed in a single piece weldless
• Working width adjustement 4 ÷ 18 m
• Long swing arm with fast-lock connection for sweep spreading
• AISI 304 stainless steel flow control
• Standard agitator
• Filtering grill
• Even distribution
• 3 points linkage, 1st Cat.
• Cardan shaft L = 700 mm with slipping clutch

Code	Model

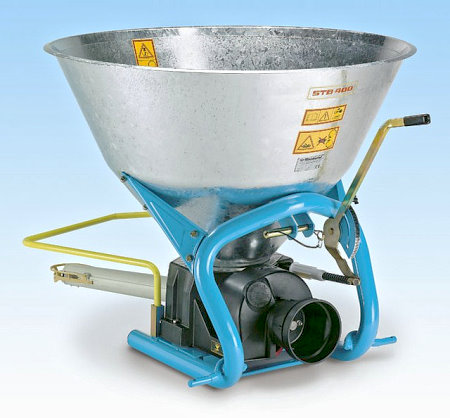

S.08.00	ST 240 pendulum fertilizer spreader with long swing arm
S.08.01	STA 300 pendulum fertilizer spreader with long swing arm
S.08.10	STB 400 pendulum fertilizer spreader with long swing arm

ACCESSORIES ON REQUEST

Code	Description
A.004	Agitator for powdered fertilizer
C.019	Cardan shaft L = 1,4 m. with clutch
C.055	"Mini Tray" painted trailer equipped with 5.00 x 10 tires
F.002	Flexible cable L = 2,5 m. for remote control
I.011	Hydraulic opening
T.001	Rain proof hopper cover
T.010	Short plastic swing arm for spreading on both sides
T.011	AISI 304 stainless steel swing arm for salt distribution. Spreading width 2 ÷ 4 m
T.060	AISI 304 stainless steel hopper and hot galvanized frame
Z.014	Hot galvanized hopper and frame

TECHNICAL DATA


Model	ST 240	STA 300	STB 400
Spreading system	Pendulum tube
Moving machine	Mounted
Hopper volume	270 litres	310 litres	360 litres
Application rate	2,0 he / h
Overall dimensions ( WxLxH )	瓧 102 x 90 cm.	瓧 110 x 95 cm.	瓧 115 x 100 cm.
Machine mass empty	90 kg	95 kg	98 kg
Spreading width	4 ÷ 18 m.
Minimum power tractor	30 HP
Cardan shaft revolution	540 rpm
Suitable fertilizer type	Chemical granular, powdered, seeds, salt, sand
