化學肥料施肥機

TECHNICAL CHARACTERISTICS

• Tubular steel frame sturdy construction
• Partially dismountable frame in 2 parts to shipment optimize
• Hot galvanized double cone shaped steel hopper constructed in a single piece weldless
• Long swing arm with fast-lock connection for sweep spreading
• Even distribution
• AISI 304 stainless steel control flow
• Working width adjustement 4 ÷ 18 m. by means of a special wrench supplied
• Standard agitator
• Filtering grill
• 3 points linkage, 1st, 2nd Cat.
• Cardan shaft L = 700 mm with slipping clutch

Code	Model

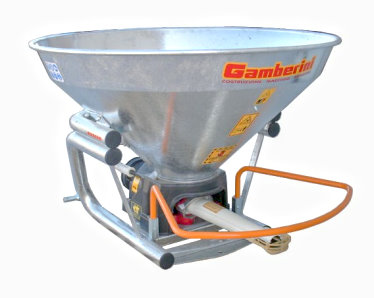

S.09.01	MAGNUM 550/P pendulum fertilizer spreader with long swing arm
S.09.10	MAGNUM 650/P pendulum fertilizer spreader with long swing arm

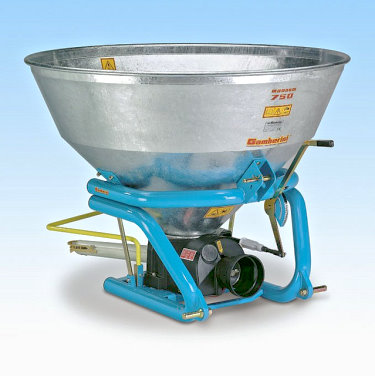

S.09.20	MAGNUM 750/P pendulum fertilizer spreader with long swing arm

ACCESSORIES ON REQUEST

Code	Description
A.004	Agitator for powdered fertilizer
C.019	Cardan shaft L = 1,4 m. with clutch
C.055	"Mini Tray" painted trailer equipped with 5.00 x 10 tires
F.002	Flexible cable L = 2,5 m. for remote control
I.011	Hydraulic opening
T.002	Rain proof hopper cover
T.010	Short plastic swing arm for spreading on both sides
T.011	AISI 304 stainless steel swing arm for salt distribution. Spreading width 2 ÷ 4 m
Z.023	Hot galvanized hopper and frame

TECHNICAL DATA


Model	MAGNUM 550/P	MAGNUM 650/P	MAGNUM 750/P
Spreading system	Pendulum tube
Moving machine	Mounted
Hopper volume	400 litres	510 litres	730 litres
Application rate	2,0 he / h
Overall dimensions ( WxLxH )	瓧 145 x 93 cm.	瓧 130 x 104 cm.	瓧 150 x 106 cm.
Machine mass empty	100 kg	110 kg	130 kg
Spreading width	4 ÷ 18 m.
Minimum power tractor	40 HP	50 HP	65 HP
Cardan shaft revolution	540 rpm
Suitable fertilizer type	Chemical granular, powdered, seeds, salt, sand
