真空水肥撒播機

COMBI TANKER 型號

產品目錄下載

COMBI TANKER

Standard extent of supply up to K52

  • Self supporting steel container hot dip galvanizEs, 瓧1100 to K35, 瓧1250 K40 to K52
  • Swiveling tanker floor up to K52
  • Running through angle frame durchgehender from K35
  • Blind flange in the front right and left
  • Standard-high tow with supporting wheel
  • Single axle
  • Automatic lever brake as service and barking brake
  • Orginal Bauer gear aggregate with compressor and high pressure centrifugal pump, can also be used as a pumping station
  • Overpressure-saftety valve 2" with blow-off hose
  • Overflow protection in the dome with spring loaded dome lid as a second over pressure valve
  • Mono vacuum meter
  • Original Bauer siphon galvanized DN 60 up to compressor B 63
  • Suction connection with ventilation cock and quick coupler mounted in the front on the left
  • Distribution valve  hydraulic with gas spring cylinder (1xEW)
  • Slurry spreader - hydraulic with large horizontal and vertical swivel range (2xDW), nozzle can be disengaged
  • Filling level indicator
  • Hose storage hooks on both sides
  • 3-chamber lighting with galvanized protection cover

Standard accessories

  • Spreader body HK 133 with spreader nozzle 瓧 52 mm, from K54 HK 159 with spreader nozzle 瓧 60 mm
  • Suction line 5", 5,0m one-piece for quick coupler (SK), - 3m hose, 2m pipe up to K46
  • Suction line 6", 5,5m divided for quick coupler (SK), - 2m hose, 3,5m pipe up to K52-K73
  • Cardan shaft wide angle unilateral 1010 with : 1 3/8" - 1 3/8" -6 parts

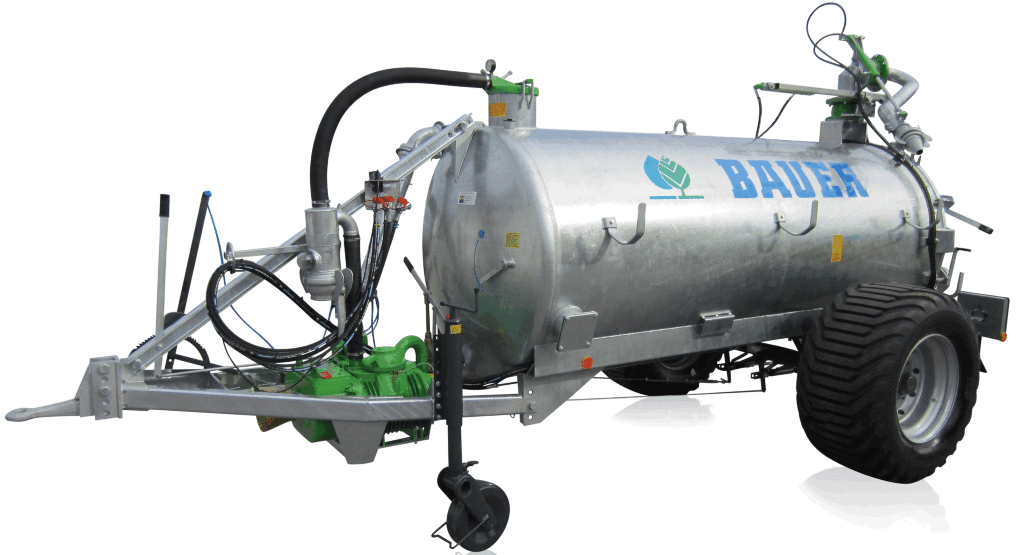

COMBI TANKER K26 / K31 / K35 / K40 / K46 / K52 Standard

Item No. Article Tanker volume(l) Wheels Suction-/pressure connection
6832130 Fass K21 F3RDK-B33K 15.0/55-17 2600 15.0/55-17 10PR AW HK 133 / 5"
6833130 Fass K31 F3RDK-B33K 15.0/55-17 3050 15.0/55-17 10PR AW HK 133 / 5"
6833530 Fass K35 F3RDK-B33K 15.0/55-17 3500 15.0/55-17 10PR AW HK 133 / 5"
6834030 Fass K40 F3RDK-B33K 15.0/55-17 4000 15.0/55-17 10PR AW HK 133 / 5"
6834630 Fass K46 F3RDK-B33 550/45-22,5 4600 550/45-22,5 16PR T648 HK 133 / 5"
6835230 Fass K52 M540K-B63K 550/60-22, 5200 550/45-22,5 16PR T648 HK 159 / 6"

COMBI TANKER K55 / K63 / K74 Standard

additionally to "standard extent of supply combi tanker single axle up to K52"

  • Container diameter  瓧1400
  • Manhole lid 瓧 750 mm
  • 1  baffle plate
  • hydraulic brake 2 cylinders optional via pedal / pedal connection
  • Spreader body  HK 133 with spreader nozzle  瓧 52 mm, from K54 HK 159 with spreader nozzle 瓧 60 mm
Item No. Article Tanker volume(l) Wheels Suction-/pressure connection
6835530 Fass K55 M540K-B63K 550/60-22. 5500 550/60-22.5 16PR T648 HK 159 / 6"
6836330 Fass K63 M540K-B63K 550/60-22, 6250 550/60-22.5 16PR T648 HK 159 / 6"
6837430 Fass K74 M540K-B63K 550/60-22, 7400 550/60-22.5 16PR T648 HK 159 / 6"

Standard extent of supply K77 / K81

  • Self supporting steel container hot dip galvanized, container 瓧 1500 K77 - K81 瓧 1600 with K87 - K107
  • Manhole lid 瓧750m
  • Swiveling tanker floor up to K52
  • Running through angle frame from K35
  • Blind flange in the front right and left
  • Standard-high tow with supporting wheel
  • Single axle
  • Automatic lever brake as service and barking brake
  • Orginal Bauer gear aggregate with compressor and high pressure centrifugal pump, can also be used as a pumping station
  • Overpressure-saftety valve 2" with blow-off hose
  • Overflow protection in the dome with spring loaded dome lid as a second over pressure valve
  • Mono vacuum meter
  • Original Bauer siphon galvanized DN 60 up to compressor B 63
  • Suction connection with ventilation cock and quick coupler mounted in the front on the left
  • Distribution valve  hydraulic with gas spring cylinder (1xEW)
  • Slurry spreader - hydraulic with large horizontal and vertical swivel range (2xDW), nozzle can be disengaged
  • Filling level indicator
  • Hose storage hooks on both sides
  • 3-chamber lighting with galvanized protection cover
  •
  • Standard accessories
  •
  • Spreader body HK 159 with spreader nozzle 瓧 60mm
  • Suction line 6", 5,5m divided for quick coupler (SK), - 2m hose, 3,5m pipe
  • Cardan shaft wide angle unilateral 1010 with : 1 3/8" - 1 3/8" -6 parts

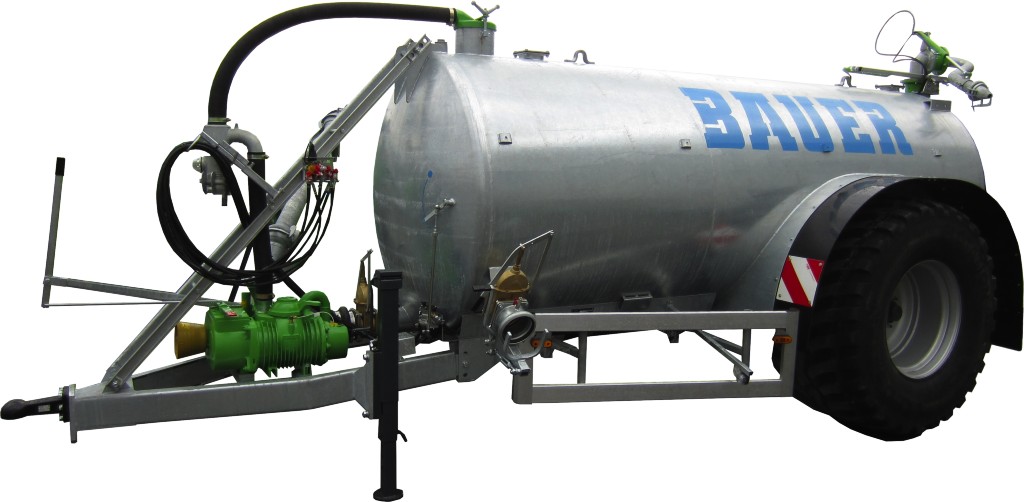

Combi tanker K77 / K81 Standard

Item No. Article Tanker volume(l) Wheels Suction-/pressure connection
6837730 Fass K77 M540K-B63K 600/50-26, 7700 600/55 - 26.5 16PR T648 HK 159 / 6"
6838130 Fass K81 M540K-B63K 600/55-26, 8100 600/55 - 26.5 16PR T648 HK 159 / 6"

Combi tanker K87 / K97 Standard

additionally to "standard extent of supply vacuum tanker single axle K77 / K81"

  • container diameter  瓧1600
  • manhole lid 瓧750 mm
  • whelel box without loss of container volume



Item No. Article Tanker volume(l) Wheels Suction-/pressure connection
6838730 Fass K87 M540K-B63K 800/45-26, 8700 800/45-26.5 12PR T648 HK 159 / 6"
6839730 Fass K97 M540K-B63K 800/45-26, 9700 800/45-26.5 12PR T648 HK 159 / 6"

COMBI TANKER K 107

additionally to  "standard extent of supply vacuum tanker single axle K77 / K81"

  • container 瓧1600 mm
  • 2 baffle plates
  • air pressure brake 2-Leiter with ALB
  • wheel cut without loss of conainer volume
  • Note: outer track 2.850mm; for outer track max. 2550mm please choose wheels/track on page 8 oR page 12
Item No. Article Tanker volume(l) Wheels Suction-/pressure connection
6831030 Fass K107M540K-B63K 850/50-30, 10700 850/50-30,5 179A8 T648 HK 159 / 6"
