小型中耕管理機

WE-Princess MP3 PRO型號

產品目錄下載



Technical data sheet WE-Princess MP3 PRO
Engine Honda GX200 OHV
Start recoil starter
Supply fuel
Displacement 196 cc, 1 Cylinder
Power 5.5 HP (4.1 kW)
Air cooled
Oil bath air filter
Fuel tank capacity 3,1 L
Gearbox 2 forward gears + reverse gear
Clutch With lever control on the handlebar working on the belt tensioner
Final drive With pinion and chain

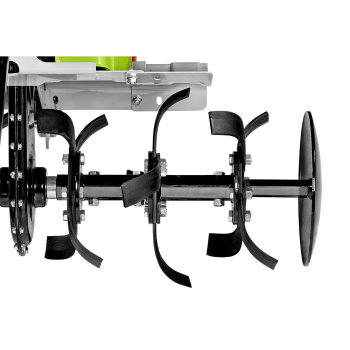

Standard rotary tiller With 6 tines and side discs, working width 97 cm. With hexagonal shaft 27 mm
Hoes system diametre 33 cm
Working depth area without side disks Adjustable at 82 and 56 cm
Working depth 33 cm
Max. revolutions tiller 1st gear 36 rpm – 2nd gear 160 rpm – reverse gear 36 rpm
Carter of the tiller Bolted, pressed steel with screwed shells
Handlebar Height and side adjustment
Standard features Front transfer wheel
Safety devices When the user leaves the handlebars the machine stops. Mudguards and handlebars according to the law. Silencer protection.
Weight 66 kg





mplements WE-Princess MP3 PRO

Furrower

Furrower - COD. 948622
to be applied on Princess M1 - Princess MP3 - Princess MP3 PRO - Princess MR
item no.: 948622
weight: 2 kg

Transport wheels for rotavator 瓧 42 cm (pair)

Side wheels pair for rotavator 瓧 42 cm - COD. 9C7522
to be applied on 11500 - 2500 - 3500 - Princess M1 - Princess MP3 - Princess MP3 PRO - Princess MR
item no.: 9C7522
weight: 7 kg
