小型中耕管理機

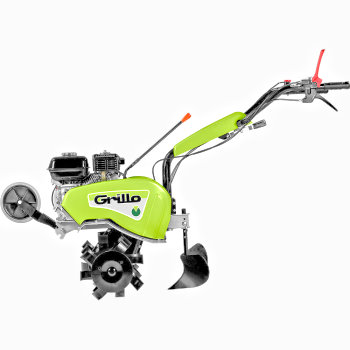

WE-Princess MP3型號

產品目錄下載



- 2 forward + 1 reverse gear


- Gearbox casings made from pressed and bolted steel


- Belts made of kevlar (high resistance)


- Comfortable handlebar incorporating all controls


- Solid and adjustable tiller


- Front transport wheel included as standard equipment
Technical data sheet WE-Princess MP3
Engine Honda GX160 OHV
Start recoil starter
Supply fuel
Displacement 163 cc, 1 Cylinder
Power 4.8 HP (3.6 kW)
Air cooled
Oil bath air filter
Engine Robin Subaru EX17 OHC
Start recoil starter
Supply fuel
Displacement 169 cc, 1 Cylinder
Power 5 HP (3.7 kW)
Air cooled
Dry air filter with interchangeable filter cartridges
Engine Kohler Lombardini 3000 Series OHV
Start recoil starter
Supply fuel
Displacement 196 cc, 1 Cylinder
Power 5.5 HP (4.1 kW)
Air cooled
Dry air filter with interchangeable filter cartridges
Fuel tank capacity 3,1 L GX160 OHC engine - 3,6 L EX 17 engine - 3,6 L SH265 engine
Gearbox 2 forward gears + reverse gear. With gears in oil bath
Clutch With lever control on the handlebar.
Final drive With pinion and chain

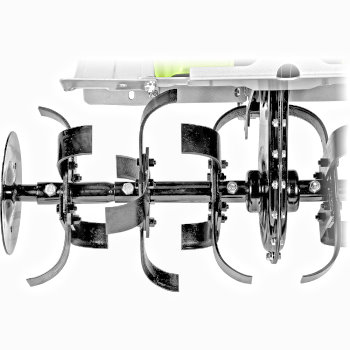

Standard rotary tiller With 6 tines and lateral discs, working width 83 cm
Hoes system diametre 32 cm
Working width area with side disks Adjustable at 83 and 59 cm
Working depth area without side disks Adjustable at 77, 52 and 30 cm
Working depth 32 cm
Max. revolutions tiller 1st gear 36rpm – 2nd gear 160 rpm – reverse gear 2,3 km/h max
Carter of the tiller Made of bolted and pressed steel

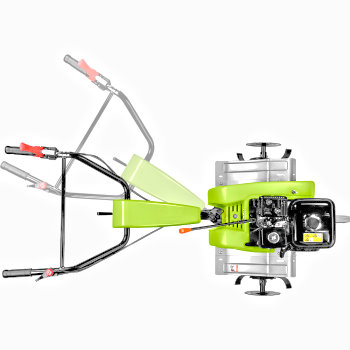

Handlebar Height and side adjustable
Standard features Front transport wheel
Safety devices The machine stops automatically when user releases the handlebars; guards, handlebars complying with the current laws; silencer-protection
Weight 62 kg with GX160 OHC engine - 64 kg with EX 17 engine - 65 kg with SH265 engine







Implements WE-Princess MP3

Furrower

Furrower - COD. 948622
to be applied on Princess M1 - Princess MP3 - Princess MP3 PRO - Princess MR
item no.: 948622
weight: 2 kg

Transport wheels for rotavator 瓧 42 cm (pair)

Side wheels pair for rotavator 瓧 42 cm - COD. 9C7522
to be applied on 11500 - 2500 - 3500 - Princess M1 - Princess MP3 - Princess MP3 PRO - Princess MR
item no.: 9C7522
weight: 7 kg

Plough Kit for Princess MP3

Plough kit for Princess MP3 - COD. 948811
to be applied on Princess MP3
item no.: 948811
weight: 68 kg

Comprenhends plough, frame for attachments, wheels and wheel-weighs.

Wheel hubs (pair)

9A4912
to be applied on Princess MP3
item no.: 9A4912
weight: 7 kg

903512
to be applied on Princess MP3
item no.: 903512
weight: 16 kg
