超大水平進料碎木機
WE-3200 型號
 |
| General Length wheeled (transport): 36’1″ Length wheeled (operating): 55’1/2″ Height wheeled: 12’7″ Height wheeled (operating): 16’1/4″ Width wheeled: 10’10” Length tracked (transport): 35′ Length tracked (operating): 54’8″ Height tracked: 12′ Height tracked (operating): 16’2″ Width tracked: 10’9″ Gross weight wheeled: 55,000 lbs. Axle weight: 35,000 lbs. Tongue weight: 20,000 lbs. Gross weight tracked: 64,000 lbs. Engine: CAT, Cummins or John Deere Horsepower: 440 HP to 630 HP Fuel capacity (tank): 250 gallons Hydraulic oil capacity: 100 gallons Brakes: air Towing arrangement: fifth wheel Hydraulically operated debris containment door Remote control with tethered back-up system Hydraulic oil cooler Infeed System Infeed opening: 57 1/2″ x 38″ Variable speed infeed system consists of one 30″ diameter top compression feed roll with internal drive and a 16′ long x 57 1/2″ wide live floor equipped with four strands of WDH-110 chain in a staggered configuration. Hammermill and Grates 28″ x 58 1/2″ Hammermill system constructed of heavy-duty 17 5/8″ diameter rotor, 16 1 1/8″-thick two-piece laser-cut rotor plates to ensure precision and enforce steel strength. The plates are keyed on a 5 7/8″ diameter shaft with 3 15/16″ bearings on both ends of the rotor and eight 2″ hammer retaining rods. Hammermill pattern has 18 2″ balanced forged heavy-duty hammers, 18 3 1/16″ wide double-edged replaceable inserts and 18 rakers. Discharge System Discharge system consists of a hydraulically driven, horizontal 42″ x 17’9″ aggregate belt conveyor discharging onto a 36″ stacking conveyor with hydraulic fold for transport. Options Electric power Externally adjustable break-away torque limiter Dust suppression system 12- or 16-knife chipper drum assembly Variety of grates sizes available Variety of conveyors available Thrower with extended discharge chute Magnetized end pulley with collecting slide tray for ferrous metal removal Automatic reversing fan system 5.5-HP air compressor with lockable enclosure ESPAR heating system for cold-weather start Hydraulic rod puller Trailer to haul soft start panel SPECIFICATIONS MAY VARY WITH EQUIPMENT OPTIONS. |
 |
| Morbark Integrated
Control Systems (MICS) Automatically adjusts feed rates and monitors pressures and feed wheel position to maximize production and engine efficiency. |
 |

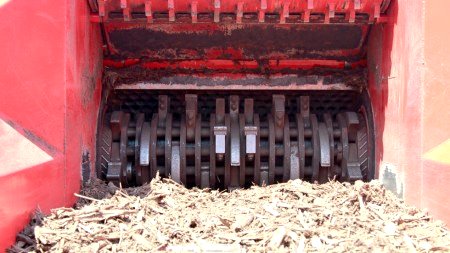

| Hammermill Laser-cut upturn rotor, factory balanced with forged hammers, offers unsurpassed durability and smooth operation. |
 |
| Feed System Internal planetary drive with no chains and sprockets means lower maintenance, more torque and better durability. |
 |

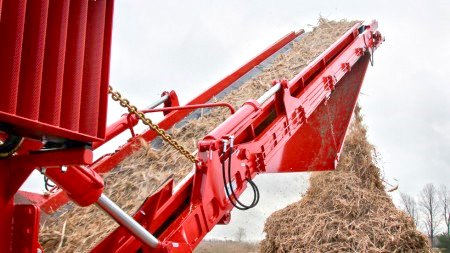

| Discharge System 36″ x 26’7″ stacking discharge conveyor has hydraulic fold for transport. |
