沙灘清潔車

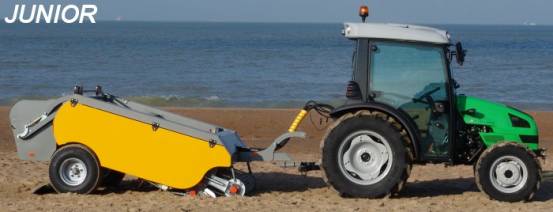

JUNIOR

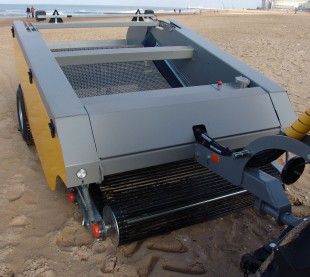

The garbage on the surface of the sand is automatically mopped up by the extra short sieve belt roller.This sieve belt roller is mounted on the front and it prevents the sand from flaring up. A wear-resistant plough knife absorbs the garbage under the surface of the sand and is adjustable in depth from 0 to 150 mm (adjustable by way of a third-point-system tractor). A turning rubber shaft and a useful sieve surface of 2.5 m?quicken the sieve capacity and limit the sand in the collection hopper which has a volume of 0.5 m? The cleaned sand is perfectly finished by a hydraulic rubber levelling plate.
|
|
|
An optimized sieve technique, a turning sieve belt with a useful sieve surface of 2.5m? sieves all the garbage. Standard universal drive system for different types of sieve belts (MZFS-system) for the simple exchange of metallic braided sieve belts or sieve belt rollers. The metallic braided sieve belts are extremely suitable for cleaning small garbage such as cigarettes etc., and have a mesh opening of 15x25 ?20x30 ?25x35 mm. The wear-resistant sieve belt rollers, made of spring steel, have a diameter of 11 mm and are attached by two wide cam belts. They are available with a mesh opening of 17 ?21mm and are used for selective cleaning or for a lasting large cleaning.
An adjustable slanting position of the rubber drive shaft prevents the metallic braided sieve belt from slanting.
瑋洲企業有限公司
台灣高雄市前鎮區武德街135巷24號
TEL : 886-7-7169249 Fax : 886-7-7169250
e-mail
: agri-machine@weizhou.com.tw
e-Mail : shiu@ksts.seed.net.tw
http://www.weizhou.com.tw/Agrimachine/i-beachcleaner/index.htm
Skype : service450429
MSN : steveLee73@hotmail.com
