農業曳引機

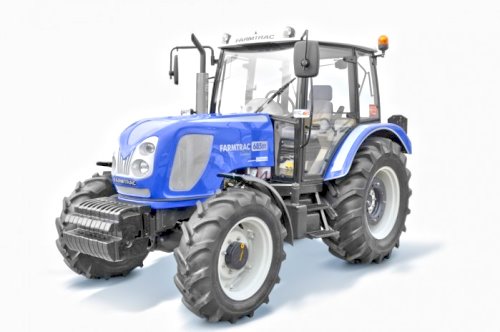

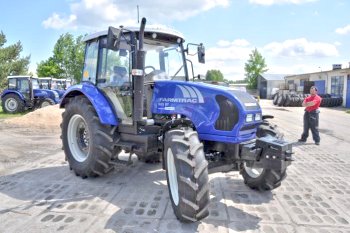

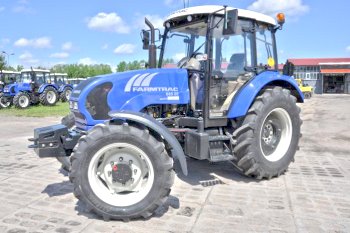

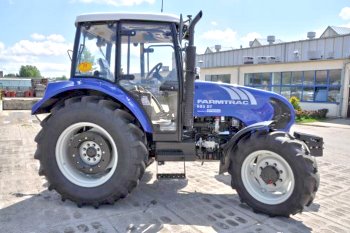

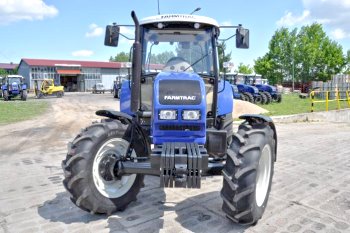

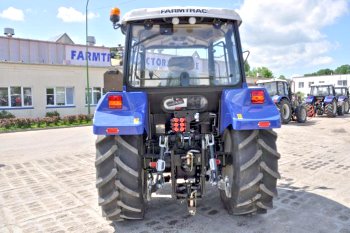

685/690DT 機型
|
ENGINE RATED POWER |
64,5KW[87,8HP] @ 2200 RPM |
|---|---|
|
MAXIMUM TORQUE |
360 Nm @1400 RPM |
|
TYPE |
PERKINS 1104D-44T |
|---|---|
|
NO OF CYL./CAPACITY[CM³] |
4/4400 TURBO |
|
COOLING SYSTEM |
liquid |
|
AIR CLEANER |
two-stage dry type |
|
CLUTCH/PTO |
two disc type with independent PTO clutch control |
|---|---|
|
GEARBOX TYPE |
constant mesh, synchronized with shuttle and reduction unit |
|
NUMBER OF GEARS F/R |
24\\24 |
|
DIFFERENTIAL LOCK |
hydrostatical |
|
TYPE |
independent and ground speed PTO |
|---|---|
|
PTO SHAFT SPEED/ENGINE RPM |
540/1938, 540E/1648 |
|
SHAFT DIA./NO.OF SPLINES |
35mm/6 |
|
FUNCTIONS |
draft and position control |
|---|---|
|
PUMP OIL FLOW, LITER/MIN |
50 |
|
NOMINAL PRESURE Mpa |
18 |
|
3-POINT HITCH |
2 kat. ISO |
|
Max. LIFT CAPACITY, [kg] |
3100 |
|
NO. OF SPOOL VALVES |
6 |
| TYPE | hydrostatic |
|---|
| SERVICE BRAKE | oil immersed disc type, mechanical actuation |
|---|---|
| PARKING BRAKE | hand lever actuation |
| TYPE | Carraro swivel pin mounted with final drive, automatic differential lock |
|---|
| FRONT | 12,4 - 24 |
|---|---|
| REAR | 18,4 - 30 |
| Type | front towing hitch, upper transport hitch, multi-hole drawbar |
|---|
| TYPE | comfort, safety, two door, low noise |
|---|---|
| EQUIPMENT | heating, ventilation, roof hath, sun visor, windscreen washer, front and rear window washer, side mirrors, front and rear work lamps at the cab roof |
|
LENGHT |
3684 - 4350 |
|---|---|
|
WIDTH |
1939 - 2403 |
|
HEIGHT |
2533 - 2584 |
|
CLEARANCE |
383 - 434 |
|
TRACTOR WEIGHT [kg] |
3987 |
|
FUEL TANK |
98 |
|---|---|
|
ENGINE LUBRICATION |
10,5 |
|
COOLING |
17 |
|
GEAR BOX/REAR AXLE + REDUCTION GEAR |
45 |
 |
 |
 |
 |
 |
