撿石頭機

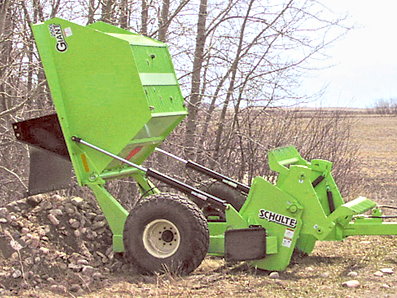

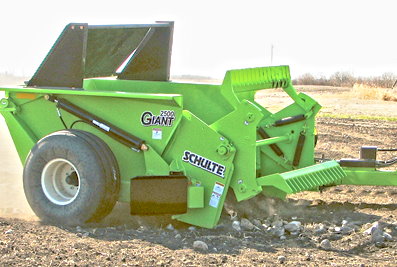

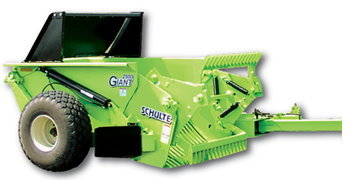

GIANT WE-2500
| Specification | |
| Minimum tractor size | 75 HP |
| Normal maximum ground speed | 4 MPH (6.4 KPH) |
| Tractor hydraulic requirement | 12 GPM @1800 PSI, dual remote outlets |
| Hydraulic motor displacement | 14.9 cubic inch/revolution |
| Final drive ratio | 4:1 |
| Drive sprockets | 11T and 45T #80 |
| Cross over relief valve | 1750 PSI cracking pressure |
| Flow control | 0-15 GPM |
| Recommended reel speed | 36-37 RPM |
| Pick rocks | 2” to 27” |
| Overall Length | 205” (5207 mm) |
| Overall width with tires | 114” (2896 mm) |
| Overall width less tires | 91” (2311 mm) |
| Hopper capacity | 2.5 cubic yards (1.9 M³) |
| Picking width | 60” (1524 mm) |
| Dumping height | 49” (1245 mm) |
| Tire size | 16.5L X 16.1 |
| Weight (approximate) | 2254 Kg |
 |
 |
