撿石頭機

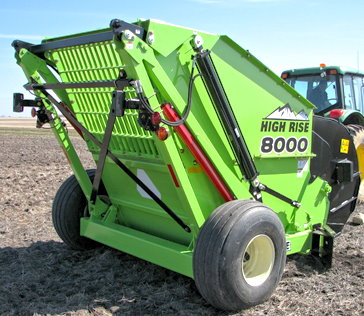

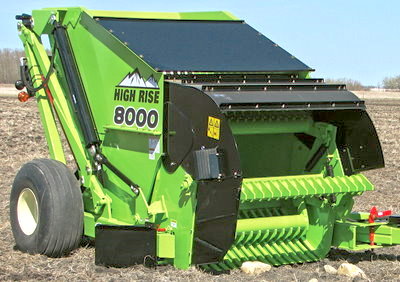

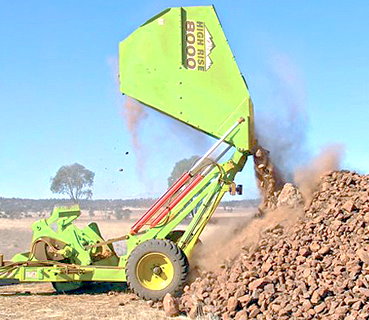

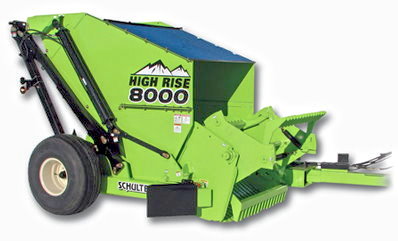

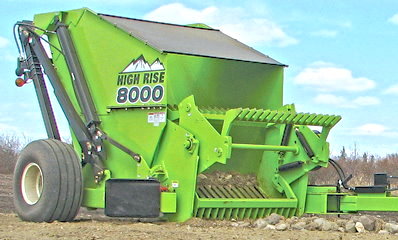

WE-8000
| Specification | |
| Minimum tractor size | 85 hp |
| Tractor hydraulic requirements | 12 GPM @ 2200 psi, dual remote outlets |
| Hydraulic motor displacement | 14.9 cu. inch/rev (244ml) |
| Final drive ratio | 4:1 |
| drive sprockets | 11T and 45T #80 |
| Crossover relief valve | 1750 psi cracking pressure |
| Recommended reel speed | 36 rpm |
| Pick rocks | 2" - 27" (5cm - 69cm) |
| Overall length | 229” (5816mm) |
| Overall width with tires | 115” (2921mm) |
| Overall width without tires | 91” (2311mm) |
| Hopper capacity | 3 cu. yards (2.29M3) |
| Picking width | 60" (1524mm) |
| Dumping height | 96" (2438mm) |
| Tire size | 16.5L x 16.1 x 10ply(stand.) |
| Weight (Approximate) | 2929Kg |
 |
 |
 |
 |
