架空旋轉箱

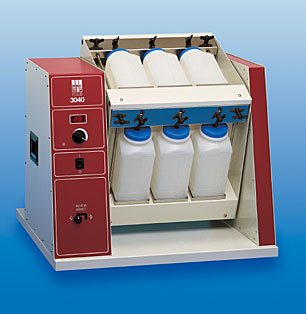

Overhead Rotator
|
Specifications and features |
||
|
|
|
Rugged design, easy operation, multi-purpose. |
|
|
|
Electronic speed control, stepless. |
|
|
|
Clearly laid out control panel for easy operation. |
|
|
|
A DC (direct current) motor with overload protection drives the unit. |
|
|
|
Constant speed during continuous operation. |
|
|
|
Compact, low-wear counterbalanced drive mechanism. |
|
|
|
Rotating rack with ball bearings on both sides, able to accomodate max. 12 flasks/vessels up to a diameter of 110 mm and a heigth of 270 mm. |
|
|
|
Holding device made of stainless steel for safe, secure clamping of the sample vessels. |
|
|
|
Housing made of electrolytically galvanised sheet steel, powder-coated. |
|
Applications |
|
The uniform rotating motion of this special Shaker make it particularly well-suited for processing soil samples in glass/plastic wide-mouth vessels with up to 2000 ml rated volume as per DIN 38414, Part 4 "German Standard Methods for Water, Wastewater and Sludge Analysis - Determination of Leachability by Water". This unit can be used in ambient temperatures between +10 and +40 °C. |
| Technical details | |
 |
|
|
Shaking motion |
overhead-rotating |
|
|
|
|
Control |
analogue |
|
|
|
|
Load capacity |
max. 20 kgs |
|
|
|
|
Capacity |
max. 12 bottles / vessels |
|
|
|
|
Flask / |
max. diameter: 110 mm Ø |
|
|
|
|
Shaking frequency |
1 - 20 rpm |
|
|
|
|
Ambient temperature |
+10 °C to +40 °C |
|
|
|
|
Electrical connection |
230 V / 50...60 Hz / 100 W * |
|
|
|
|
Exterior dimensions |
770 x 700 x 715 mm |
|
|
|
|
Net / gross weight |
62.0 / 78.0 kgs |
|
|
|
|
Packing volume |
0.91 m3 |
* other voltages on request
