CNC
Control CBN Grinding Wheel
|
|
|

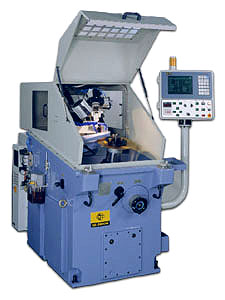

Photo:
SG - 500CNC - CB
|
¡@
-
Interactive
Screen Display and Control: user-friendly man-machine interface
for easy operation
-
Digitalized
Parameter Input: such as diameter, teeth number, and cutting
angle, is high-lighted on the screen for easy input
-
Time
Saving: Only one revolution is enough for re-sharpening in most
cases
-
Tooth
Profile Selection: Switch the selecting knob to the desired
tooth profile
-
Self-Diagnosis
System: Malfunction is self-detected with error messages
displayed on the screen
-
High
Pressure Cooling System: For excellent heat dispensing
|
|
|
Type\Features |
Saw Blade |
Grinding
Wheel
Diameter |
Feeding
Speed |
Diameter |
Tooth Pitch |
SG-500CNC |
70~500 mm |
Up to 24 mm |
130~230 mm |
20~180
teeth/min |
SG-500CNC-CB |
70~500 mm |
Up to 24 mm |
CBN200mm |
2~60teth/min |
|
|
|
|

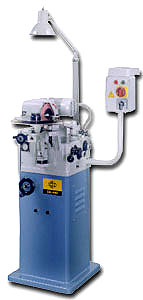

Photo: SG - 450
|
Manual
Saw Blade Sharpening Machine
-
Easy
Operation -- for Non-experienced User
-
Over
10-years Reputation -- Reliable & High Performance
-
Simple
Maintenance
-
Cutting
angle, Clearance angle, Depth of the teeth easy to adjust
-
Quick
setting for high-low teeth
-
Indicator
Meter: To help provide the best quality sharpening for different saw
blade thickness
-
Grinding
head can be proceed up-down to perform chamfering of saw blade teeth
easily and quickly
-
The
index-finger is made of tungsten carbide tipped for long last
performance
-
Index-arm
is designed to provide high quality consistant performance
|
|
|
Type\Features |
Saw Blade |
Grinding
Wheel Diameter |
Feeding
Speed |
Diameter |
Tooth Pitch |
SG-450 |
50~450 mm |
Up to 25 mm |
75~150 mm |
45~180
teeth/min |
|
|
|
Saw
Blade Chamfering Automation

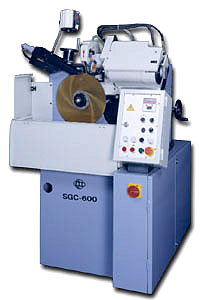

Photo: SGC - 600
|
¡@
-
Powerful
driving with CBN grinding wheel and
coolant system
-
PLC
Controller allows electronic maintenance and trouble shooting
-
Numeric
digital counter: Machine automatically stops when the pre-set
number of chamfers is reached
-
Hydraulic
saw-blade clamping device: adjust each tooth to the center line
of machine
-
Two
moving speed: Fast speed for switching movement. Slow speed for
chamfering. To reduce attrition as well as to save time
-
Two
positions of stopper block: 30 or 45 tooth bevel
-
Adjustment-free
clearance angle
-
Closed
oil circulation and lubrication system for worm gear and each liner
slide
|
|
|
Type\Features |
Saw Blade |
Grinding
Wheel
Diameter |
Feeding
Speed |
Diameter |
Tooth Pitch |
SGC-600 |
80~600 mm |
Up to 20 mm |
CBN200 mm |
20~60
teeth/min |
|
|
|
Teeth
Slotting Machine

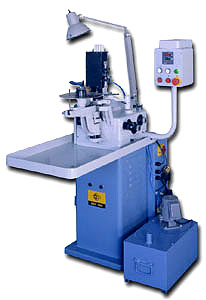

Photo: SGS - 450
|
¡@
¡@
Type\Features |
Saw
Blade |
CBN
Wheel Diameter |
Feeding
Speed |
Diameter |
Tooth
Pitch |
SGS-450 |
70~450
mm |
Up
to 25 mm |
CBN15~30
mm |
45
teeth/min |
|
