CR-G50

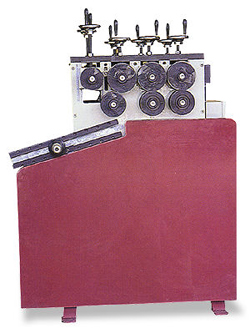

CR-G38A
|
- Bending
speed can be adjusted freely from 1.5 seconds every 300mm to 5
seconds every 300mm.
- Bending
diameter can be adjusted freely from 250mm to 2000mm. As to
special requirements (smaller than 250mm or larger than
2000mm), we can design and produce special-purpose machines.
- Roundness
tolerance is £¾Ó1.0mm between the first circle &
the last circle of finished products.
- Flatness
tolerance is also £¾Ó1.0mm.
- The
machine is equipped with a micro-adjustment device for
adjusting the diameter.
- The
machine is suitable for various metal pipes with different
material and shapes.

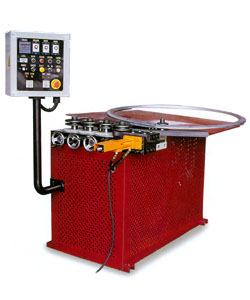

CR-G38
|
MODE |
O.D.*Wall |
Bending
Radius(mm) |
Bending
Speed |
Horse
Power |
Total
Length |
Total
Width |
Total
Height |
Total
Weight |
CR-G38A |
38*2.0 |
25~1000mm |
90¢X1.5~5/sec |
5HP |
1700mm |
1200mm |
2300mm |
950kg |
CR-G50 |
50*4.0 |
7.5HP |
1400mm |
2500mm |
1205kg |
CR-G38 |
38*2.0 |
125~¡Û |
5HP |
1400mm |
1200mm |
800mm |
1050kg |
|
|
¡@
