| Fully
Automatic Circular Sawing Machines |
|
|
|
- Vertical
Sliding Saw Head insures stable
and precise cutting
- Backlash-Eliminating
Device prolongs Saw Blade life
- Rigid
and reliable Clamping Vise provides secure material
holding
- Auto
Lubricating System maintains good work condition
- Circular
Cooling System produces sooth cutting surface
- Saw
Blade Protection Device for safe cutting
- Build-in
Chip Tray for convenient cleaning
|
|
|
HVS-375FA-NC |
|
|
|
HVS-375FA-NC / HVS-400FA-NC
NC
Control and Touch Screen Type
- Servo
Control Material Feeding
- Best
for cutting shorter material
- Various
cutting-length settings on the material
- Patented
floating carriage smoothes marterial
handling
- PLC
Control circuit simplifies
troubleshooting and repair
- Centralized
control panel for easy understanding and operation
- Electronic
Saw Blade Protection Device for safe cutting
- Digital
Counter for automatic cutting and stop
|
|
HVS-375FA-DR |
|
|
Cutting Capacity
(Mild Steel)
|
| ¡@ |
HVS-375FA-DR
HVS-375FA-NC
|
HVS-400FA-DR
HVS-400FA-NC
|
|
A
Type
|
B
Type
|
C
Type
|
A
Type
|
B
Type
|
C
Type
|
| Round
Tube |
O.D.
110 mm |
O.D.
125 mm |
| Square
Tube |
110x110mm |
125x125mm |
| Rectan.
LegTube |
160x100mm |
160x100mm |
| Solid
Round Bar |
O.D.
75mm |
O.D.
100mm |
| Solid
Square Bar |
65x65mm |
100x100mm |
| Multiple
Tubes or Bars |
Use
sets of optional V-type clamping jaws, 2/4/6/9 pieces
(depend on size) can be cut at same time. |
|
|
HVS-375FA-DR / HVS-400FA-DR
Mateiral
Feeding Length Display Type
- Especially
for cutting Heavy Wall Tubes or Solid Bars
- Patented
floating carriage smoothes material
handling
- PLC
Control circuit simplifies
troubleshooting and repair
- Centralized
control panel for easy understanding and operation
- Electronic
Saw Blade Protection Device for safe cutting
- Digital
Counter for automatic cutting and stop
|
|
¡@
|
Cutting Capacity
(Mild Steel)
|
| ¡@ |
HVS-375FA-DR
HVS-375FA-NC
|
HVS-400FA-DR
HVS-400FA-NC
|
|
A
Type
|
B
Type
|
C
Type
|
A
Type
|
B
Type
|
C
Type
|
| Round
Tube |
O.D.
110 mm |
O.D.
125 mm |
| Square
Tube |
110x110mm |
125x125mm |
| Rectan.
LegTube |
160x100mm |
160x100mm |
| Solid
Round Bar |
O.D.
75mm |
O.D.
100mm |
| Solid
Square Bar |
65x65mm |
100x100mm |
| Multiple
Tubes or Bars |
Use
sets of optional V-type clamping jaws, 2/4/6/9 pieces
(depend on size) can be cut at same time. |
|
|
|
|
 |
 |

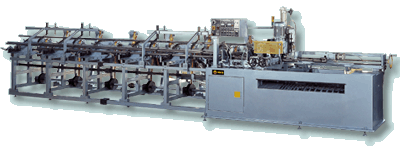

| VS-340FA + MB6 |
|
| Consists
of: |
| 1.
Automatic Circular Sawing Machine |
| 2.
Bundle Carriage with Automatic Tube Loading Magazine |
| 3.
Workpiece Discharge Unit |
|
|
Cutting
Capacity:
-
Solid
Bars
40mm DIA 40x40mm Square
-
Round
Tubes
12mm up to 76mm
-
Rectangular
Tubes 12x12mm up
to 52x52mm
|
|
|
|
|
|
|
Specifications
(Circular Sawing Machine):
|
Automatic
Circular Sawing Machine VS-340FA
|
|
Motor
|
Spindle
|
H Type 2 or 4 Poles, 3 or 2 HP |
|
L Type 2 or 4 Poles, 3 or 2 HP |
|
Material
Feeding Motor
|
4 Poles, 1 or 2 HP |
|
Coolant
Pump
|
4 Poles, 1/8 HP |
|
Blade
|
Blade
Speed
|
H Type 104 or 52 RPM |
|
L Type 60 or 30 RPM |
|
Recommend
Blade
|
HSS Blades
250 to 350 mm
More Hole 32mm
Pine Hole 2/11/63 PCD
|
|
Blade Feeding Speed |
0 to 20 m/min infinite variable |
|
Pressure Air Request |
6 to 8 kg/square meter, 250NL/min |
|
Max. Cutting Length |
1500 min. or *2000mm |
|
Min. Cutting Length |
150mm or * 50mm |
|
1st Crop Cut |
Length can be set |
|
Remnant End Length |
Max. 700mm |
|
Specifications (Loading
Magazine):
|
Automatic
Loading Magazine MB6
|
|
Motor |
Bundle Carriage |
4 Poles 2 HP |
|
Transferring Chain |
4 Poles 1/2 HP |
|
Loading Capacity |
Tube/Pipe |
Max. OD 76mm, Min. OD 12mm |
|
Bar Stock |
Max. 40mm DIA, Min. OD 12mm DIA |
|
Material Length |
Max. 7000mm, Min. 3000mm |
|
Material Weight |
Max. 3500KGS |
|
Control |
Automatic Control together with VS-340FA |
|
Weight |
VS-340FA |
1500KGS |
|
MB6 |
1500KGS |
|
