ROUND
BAMBOO CROSS CUTTING MACHINE CYM-001
¡@
¡@
¡@ |
| Description: |
|
| BAMBOO
DIAMETER |
0-150MM |
| SPINDLE
SPEED |
2,700 R.P.M. |
| HORSEPOWER |
1HP |
| N.W. |
60KGS |
| G.W. |
110KGS |
| MACHINE
SIZE (LxWxH) |
33"x16"x54" |
| PACKING
SIZE (LxWxH) |
40"x24"x57 |
|
¡@
¡@
|
|
HAND
SPLITTER CYM-002
¡@ |
¡@
| Description: |
|
| QUANTITY &
KIND |
1 SET OF 6 PCS.
CONSIST OF:
8 SPLITTER ...........1PC
10 SPLITTER ...........1PC
12 SPLITTER ...........1PC
14 SPLITTER ...........1PC
16 SPLITTER ...........1PC
18 SPLITTER ...........1PC |
N.W.
3.0KGS
3.2KGS
3.4KGS
3.6KGS
3.8KGS
4.0KGS |
|
¡@
¡@
¡@ |
|

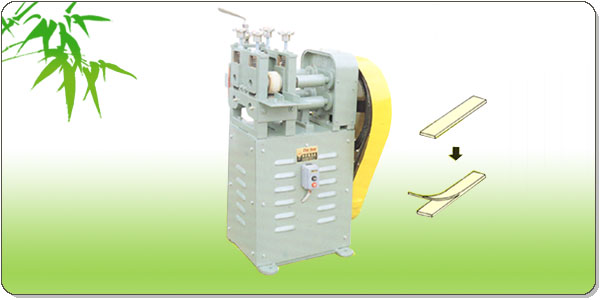

BAMBOO
SLICING MACHINES CYM-003
|
| Description: |
|
| HORSEPOWER |
1/2 HP |
| N.W. |
105KGS |
| G.W. |
130KGS |
| MACHINE
SIZE (LxWxH) |
20"x18"x35" |
| PACKING
SIZE (LxWxH) |
27"x24"x45" |
|
¡@
¡@
¡@
|
|
BAMBOO
STICK MAKING MACHINE CYM-005J
¡@ |
| Description: |
|
| HORSEPOWER |
3HP + 3HP |
| N.W. |
330KGS |
| G.W. |
400KGS |
| MACHINE
SIZE (LxWxH) |
52"x28"x35" |
| PACKING
SIZE (LxWxH) |
58"x35"x48" |
|
¡@
¡@
¡@
¡@ |
|
DRYER
CYM-082
¡@ |
| Description: |
|
By burning kerosene or High
Test Diesel, this machine can produce vaporized fire power
to dry Bamboo & Wood ware The hot air temperature is
kept at 10oC to 60oC. The hot air
quantity is 62M3 per minute. To add per 10oC
Temperature should consume 1.1
fuel per Hour. |
| CAPACITY
OF WORKING TANK |
90CUFT |
| HORSEPOWER |
1HP |
| N.W. |
1.MOTOR |
1.65KGS |
| 2.BODY |
2.160KGS |
| G.W. |
1.110KGS
2.220KGS |
| MACHINE
SIZE (LxWxH) |
160"x96"x34" |
| PACKING
SIZE (LxWxH) |
1.38"x38"x27"
2.101"x13"x54" |
|
¡@ |
|
TOOTHPICK
& SKEWER SIZING MACHINE CYM-006
|
Description:
| CUTTING
LENGTH |
60-600MM |
| SPINDLE
SPEED |
2,700R.P.M. |
| HORSEPOWER |
1HP |
| N.W. |
110KGS |
| G.W. |
180KGS |
| MACHINE
SIZE (LxWxH) |
48"x30"x33" |
| PACKING
SIZE (LxWxH) |
53"x34"x45" |
¡@
¡@ |
|

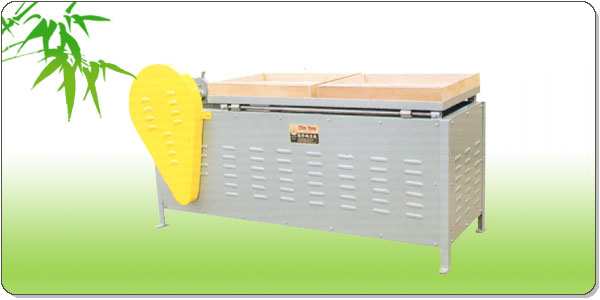

TOOTHPICK
POLISHING MACHINE CYM-007T
|
| Description: |
|
| POLISHING
LENGTH |
60-85MM |
| CAPACITY OF
WORKING TANK |
2.86CUFT |
| SPINDLE
SPEED |
238RPM |
| HORSEPOWER |
1/2 HP |
| N.W. |
220KGS |
| G.W. |
300KGS |
| MACHINE SIZE
(LxWxH) |
76"x28"x30" |
| PACKING SIZE
(LxWxH) |
82"x32"x40" |
|
¡@
¡@ |
|
TOOTHPICK
SHAVING MACHINE
CYM-008T,
CYM-008TF
|
| Description: |
|
| MODEL |
CYM-008T |
CYM-008TF |
| DIAMETER OF
MATERIAL AVAILABLE |
1.5-2.3MM |
1.5-2.3MM |
| LENGTH OF
MATERIAL AVAILABLE |
65MM |
65MM |
| PRODUCTIVITY |
520-625PCS/MIN. |
416-520PCS/MIN. |
| HORSEPOWER |
1HP |
1HP |
| N.W. |
225KGS |
225KGS |
| G.W. |
310KGS |
310KGS |
| MACHINE SIZE
(LxWxH) |
49"x34"X39" |
49"x34"x39" |
| PACKING SIZE
(LxWxH) |
54"x41"x49" |
59"x41"x49" |
¡@
|
|
|
HIGH
SPEED TOOTHPICK SHAVING MACHINE
CYM-008H, CYM-008HF
|
| Description: |
|
| MODEL |
CYM-008H |
CYM-008HF |
| PRODUCTIVITY |
1050~1350PCS/MIN. |
1050~1350PCS/MIN. |
| HORSEPOWER |
1HP + 4x1/2HP |
1HP + 3x1/2 HP |
| N.W. |
300KGS |
300KGS |
| G.W. |
390KGS |
390KGS |
| MACHINE SIZE
(LxWxH) |
67"x24"x44" |
67"x24"x44" |
| PACKING SIZE
(LxWxH) |
74"x32"x55" |
74"x32"x55" |
|
¡@ |
|
TOOTHPICK
ARRANGING MACHINE
CYM-009T
|
| Description: |
|
| CAPACITY OF
WORKING TANK |
0.6CUFT |
| SPINDLE
SPEED |
268R.P.M. |
| HORSEPOWER |
1/2 HP |
| N.W. |
128KGS |
| G.W. |
198KGS |
| MACHINE SIZE
(LxWxH) |
69"x29"x36" |
| PACKING SIZE
(LxWxH) |
75"x32"x48" |
|
¡@ |
|

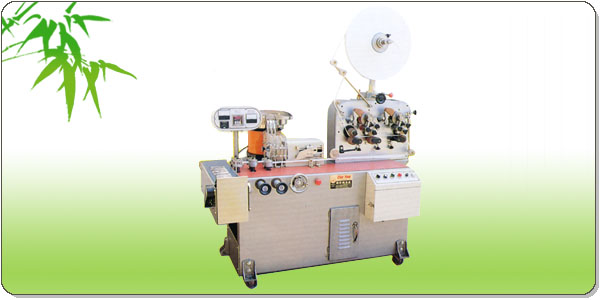

AUTOMATIC
TOOTHPICK PACKING MACHINE
CYM-046
|
| Description: |
|
FEATURES:
1.With 2-color printing device.
2.When machine fails to be operated, auto stop can function
to stop for operating.
3.Accurate automatic counting, temporary stop, zero return
device.
4.Printing, filling and packing will be done at a time. Only
one operator required for each machine.
5.Variable speed change for packing, and it can be adjusted
freely. |
|
| Materials |
Bible Paper |
| Width
of Paper |
25-30mm |
| Length
of Toothpick |
65mm |
| Productivity |
200-250 pcs/min |
| Horse
Power |
1/2HP |
| N.W. |
230KGS. |
| G.W. |
280KGS. |
| Machine
Size (LxWxH) |
62"X42"X64" |
| Packing
Size (LxWxH) |
65"X34"X57" |
|
