Wood Ice-Cream Spoon Working machine
PEELING MACHINE CYM-031A
¡@ |
| Description: |
|
|
|
CYM-031A |
CYM-031B |
| DIAMETER
OF ORIGINAL WOOD |
70~600mm |
70~600mm |
| LENGTH
OF ORIGINAL WOOD |
127~520mm |
127~762mm |
| THICKNESS
OF PEELING |
0.35~5mm |
0.35~3mm |
| R.P.M. |
40
OR 54 |
40
OR 54 |
| HORSEPOWER |
1/2HP
+ 7 1/2 HP |
1/2HP
+ 10HP |
| N.W. |
1080
KGS |
1170
KGS |
| G.W. |
1140KGS |
1330KGS |
| MACHINE
SIZE (LxWxH) |
99"x40"x40" |
110"x40"x45" |
| PACKING
SIZE (LxWxH) |
102"x43"x50" |
115"x43"x51" |
|
¡@ |

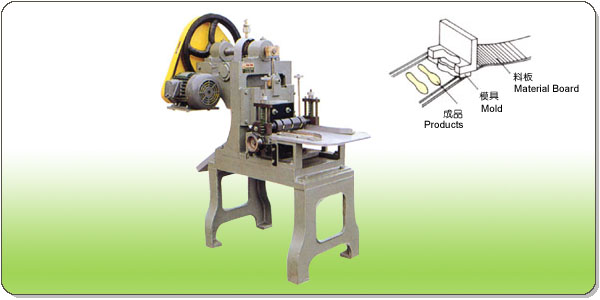

MOLD FORMING MACHINE CYM-032N
|
| Description: |
|
| LENGTH
OF CUTTING |
70~180mm |
| WIDTH
OF CUTTING |
0~45mm |
| THICKNESS
OF CUTTING |
0~5mm |
| PRODUCTIVITY |
20000~26000PCS/HR |
| HORSEPOWER |
1HP |
| N.W. |
320KGS |
| G.W. |
400KGS |
| MACHINE
SIZE (LxWxH) |
47"x30"x55" |
| PACKING
SIZE (LxWxH) |
51"x35"x66" |
|
¡@ |
DRYER CYM-083L
|
By burning Bamboo or Wood waste,
this machine can produce vaporized firepower to dry Bamboo & Wood
Ware. The hot air temperature is kept at 10oC to 75oC.
¡@
| CAPACITY
OF WORKING TANK |
300000-400000 PAIRS |
| HORSEPOWER |
3HP |
| N.W. |
1000KGS |
| G.W. |
1150KGS |
| MACHINE
SIZE (LxWxH) |
77"x39"x86" |
| PACKING
SIZE (LxWxH) |
83"x45"x92" |
¡@
¡@ |
DRYER
CYM-082
¡@ |
| Description: |
|
By burning kerosene or High
Test Diesel, this machine can produce vaporized fire power
to dry Bamboo & Wood ware The hot air temperature is
kept at 10oC to 60oC. The hot air
quantity is 62M3 per minute. To add per 10oC
Temperature should consume 1.1
fuel per Hour. |
| CAPACITY
OF WORKING TANK |
90CUFT |
| HORSEPOWER |
1HP |
| N.W. |
1.MOTOR |
1.65KGS |
| 2.BODY |
2.160KGS |
| G.W. |
1.110KGS
2.220KGS |
| MACHINE
SIZE (LxWxH) |
160"x96"x34" |
| PACKING
SIZE (LxWxH) |
1.38"x38"x27"
2.101"x13"x54" |
|
¡@ |
¡@
¡@
Specification
are subject to change without notice for improvement
¡@
¡@
