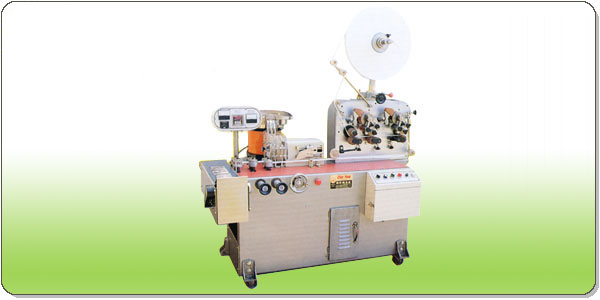

AUTOMATIC TOOTHPICK PACKING MACHINE
CYM-046
|
Description: |
|
FEATURES:
1.With 2-color printing device.
2.When machine fails to be operated, auto stop can function
to stop for operating.
3.Accurate automatic counting, temporary stop, zero return
device.
4.Printing, filling and packing will be done at a time. Only
one operator required for each machine.
5.Variable speed change for packing, and it can be adjusted
freely. |
Materials |
Bible
Paper |
Width
of Paper |
25-30mm |
Length
of Toothpick |
65mm |
Productivity |
200-250
pcs/min |
Horse
Power |
1/2HP |
N.W. |
230KGS. |
G.W. |
280KGS. |
Machine
Size (LxWxH) |
62"X42"X64" |
Packing
Size (LxWxH) |
65"X34"X57" |
|
|
¡@
¡@ |
AUTOMATIC P.P. STRAW PACKING MACHINE
CYM-045SP
|
Description: |
|
CHARACTERISTICS:
Having 2-color
printing equipment.
With
equuipment calculating accurately & automatically,
stopping and Turn-to-Zero.
To complete printing filling in & packing at a
time. Each machine is operated by just one person.
Packing
speed is non-sectional shift speed the spesed can be
adjusted freely. |
Materials |
Bible Paper |
Width
of Paper |
25-30mm |
Length
of P.P. Straw |
21, 22, 23cm |
Productivity |
400-450pcs/min. |
Horse
Power |
1HP |
N.W. |
380 KGS |
G.W. |
440 KGS |
Machine
Size (LxWxH) |
76"x40"x60" |
Packing
Size (LxWxH) |
85"x45"x65" |
|
|
¡@
¡@ |
AUTOMATIC CHOPSTICK PACKING MACHINE CYM-049
|
MATERIALS |
CPP,OPP |
WIDTH OF PAPER |
40mm~45mm |
LENGTH OF PACKING |
230mm |
PRODUCTIVITY |
120~180PCS/MIN |
ELECTRIC HEATING |
300W |
HORSEPOWER |
1/8 HP DC |
N.W. |
220 KGS |
G.W. |
320 KGS |
MACHINE SIZE (LxWxH) |
66"x26"x46" |
PACKING SIZE (LxWxH) |
63"x30"x50" |
¡@
¡@ |
AUTOMATIC CHOPSTICK PACKING MACHINE CYM-045
|
FEATURES:
1.Having 2-color printing device.
2.With equipment calculating accurately & automatic, stopping,
and Turn-to Zero.
3.To complete printing, filling in & packing at a time. Each
machine is operated by just one person.
4.Packing speed is non-sectional shift speed, the speed can be
adjusted freely. |
TYPE |
CYM-045 |
Materials |
Simile Paper |
Width of Paper |
60-70 mm |
Length of Packing |
250-280mm |
Productivity |
100-130 pcs/min. |
Electric Heating |
100w |
Hores Power |
1/2 HP |
N.W. |
320 KGS. |
G.W. |
380 KGS. |
Machine Size (LxWxH) |
74"X31"X72" |
Packing Size (LxWxH) |
85"X36"X64" |
¡@
¡@ |
Automatic Toothpick Packing Machine(Electric
Heating) CYM-046H
|
Description: |
|
MODEL |
CYM-046(Electric
Heating) |
Materials |
Simile
Paper(+PE)/CPP.OPP |
Width
of Paper |
25-30mm |
Standard
Length |
65mm |
Productivity |
120-150pcs/min |
Electric
Heating |
200W |
Horse
Power |
1HP |
N.W. |
400KGS |
G.W. |
550KGS |
Machine
Size(LxWxH) |
64"x42"x69" |
Packing
Size(LxWxH) |
68"x46"x69" |
|
|
¡@ |
Ice-Cream Packing & Printing Machine(2-Color)
CYM-048I
|
Description: |
|
MODEL |
CYM-048I |
Materials |
Simile Paper(+PE) |
Width
of Paper |
60mm |
Standard
Length |
75mm |
Productivity |
70-80pcs/min |
Electric
Heating |
400W |
Horse
Power |
1HP |
N.W. |
350KGS |
G.W. |
500KGS |
Machine
Size(LxWxH) |
67"x31"x69" |
Packing
Size(LxWxH) |
71"x35"x69" |
|
¡@ |
Tongue
Depressor Packing & Printing Machine
(2-Color)
CYM-0448T
|
Description: |
|
MODEL |
CYM-048T |
Materials |
Simile Paper(+PE) |
Width
of Paper |
60mm |
Standard
Length |
152mm |
Productivity |
60-70pcs/min |
Electric
Heating |
400W |
Horse
Power |
1HP |
N.W. |
350KGS |
G.W. |
500KGS |
Machine
Size(LxWxH) |
69"x31"x69" |
Packing
Size(LxWxH) |
71"x35"x69" |
|
¡@ |
Automatic Chopstick Packing & Printing
Machine(3-Color) CYM-345
|
Description: |
|
MODEL |
CYM-345 |
Materials |
Simile Paper |
Width
of Paper |
60mm |
Standard
Length |
210-230mm |
Productivity |
150-180pcs/min |
Electric
Heating |
- |
Horse
Power |
1/2HP+1/2HP+1/8HP+40W |
N.W. |
520KGS |
G.W. |
670KGS |
Machine
Size(LxWxH) |
87"x31"x72" |
Packing
Size(LxWxH) |
91"x35"x72" |
|
¡@ |
Automatic P.P. Straw Packing Machine
CYM-045SPH
|
Description: |
|
MODEL |
CYM-045SPH(Electric
Heating) |
Materials |
CPP.OPP |
Width
of Paper |
25-30mm |
Standard
Length |
180-200mm |
210-230mm |
Productivity |
200-250pcs/min |
Electric
Heating |
900W |
Horse
Power |
1HP+25W+40W |
N.W. |
490KGS |
G.W. |
610KGS |
Machine
Size(LxWxH) |
64"x40"x76" |
Packing
Size(LxWxH) |
68"x44"x84" |
|
¡@ |
