ROUND
BAMBOO CROSS CUTTING MACHINE CYM-001
¡@
¡@
¡@ |
| Description: |
|
| BAMBOO
DIAMETER |
0-150MM |
| SPINDLE
SPEED |
2,700 R.P.M. |
| HORSEPOWER |
1HP |
| N.W. |
60KGS |
| G.W. |
110KGS |
| MACHINE
SIZE (LxWxH) |
33"x16"x54" |
| PACKING
SIZE (LxWxH) |
40"x24"x57 |
|
¡@
¡@
|
BAMBOO SPLITTING MACHINE CYM-012
|
| Description: |
|
| SPECIFICATION |
6' |
8' |
10' |
12' |
| SPINDLE SPEED |
10 R.P.M. |
9 R.P.M. |
8 R.P.M. |
7 R.P.M. |
| HORSEPOWSER |
7 1/2HP |
7 1/2HP |
7 1/2HP |
7 1/2HP |
| N.W. |
530KGS |
550KGS |
570KGS |
590KGS |
| G.W. |
590KGS |
620KGS |
650KGS |
680KGS |
| MACHINE SIZE(LxWxH) |
150"x35"x50" |
174"x35"x50" |
198"x35"x50" |
222"x35"x50" |
| PACKING SIZE(LxWxH) |
156"x44"x58" |
180"x44"x58" |
204"x44"x58" |
228"X44"X58" |
|
¡@ |
BAMBOO SLICING & INSIDE KNOT REMOVING
MACHINE CYM-013
¡@ |
| Description: |
|
| HORSEPOWER |
1HP |
| N.W. |
188KGS |
| G.W. |
203KGS |
| MACHINE SIZE(LxWxH) |
25"x25"x37" |
| PACKING SIZE (LxWxH) |
31"x29"x45" |
|
¡@ |
BAMBOO SLICING MACHINE CYM-003
|
| Description: |
|
| HORSEPOWER |
1/2 HP |
| N.W. |
105 KGS |
| G.W. |
130 KGS |
| MACHINE SIZE(LxWxH) |
20"x18"x35" |
| PACKING SIZE (LxWxH) |
27"x24"x45" |
|
¡@ |
BAMBOO STICK MAKING MACHINE CYM-005J
|
| Description: |
|
| HORSEPOWER |
3HP + 3HP |
| N.W. |
330KGS |
| G.W. |
400KGS |
| MACHINE SIZE (LxWxH) |
52"x28"x35" |
| PACKING SIZE (LxWxH) |
58"x35"x48" |
|
¡@ |
CYM-006C
|
| Description: |
|
| SPECIFICATION |
6' |
8' |
10' |
12' |
| SPINDLE SPEED |
2,700R.P.M |
2,700R.P.M. |
2,700R.P.M. |
2,700R.P.M. |
| HORSEPOWSER |
1HP |
1HP |
1HP |
1HP |
| N.W. |
90KGS |
100KGS |
110KGS |
120KGS |
| G.W. |
180KGS |
200KGS |
220KGS |
240KGS |
| MACHINE SIZE(LxWxH) |
74"x24"x35" |
98"x24"x35" |
122"x24"x35" |
146"x24"x35" |
| PACKING SIZE(LxWxH) |
78"x28"x39" |
102"x28"x39" |
126"x28"x39" |
150"x28"x39" |
|
¡@ |
|
DRYER
CYM-082
¡@ |
| Description: |
|
By burning kerosene or High
Test Diesel, this machine can produce vaporized fire power
to dry Bamboo & Wood ware The hot air temperature is
kept at 10oC to 60oC. The hot air
quantity is 62M3 per minute. To add per 10oC
Temperature should consume 1.1
fuel per Hour. |
| CAPACITY
OF WORKING TANK |
90CUFT |
| HORSEPOWER |
1HP |
| N.W. |
1.MOTOR |
1.65KGS |
| 2.BODY |
2.160KGS |
| G.W. |
1.110KGS
2.220KGS |
| MACHINE
SIZE (LxWxH) |
160"x96"x34" |
| PACKING
SIZE (LxWxH) |
1.38"x38"x27"
2.101"x13"x54" |
|
¡@ |
|
BAMBOO
STICK POLISHING MACHINE
CYM-007C
¡@ |
| Description: |
|
| SPECIFICATION |
6' |
8' |
10' |
12' |
| SPINDLE
SPEED |
90 R.P.M. |
90 R.P.M. |
90 R.P.M. |
90 R.P.M. |
| HORSEPOWSER |
1HP |
1HP |
1HP |
1HP |
| N.W. |
200KGS |
220KGS |
240KGS |
260KGS |
| G.W. |
280KGS |
315KGS |
350KGS |
385KGS |
| MACHINE
SIZE(LxWxH) |
90"x38"x58" |
114"x38"x58" |
138"x38"x58" |
162"x38"x58" |
| PACKING
SIZE(LxWxH) |
94"x38"x44" |
118"x38"x44" |
142"x38"x44' |
166"x38"x44" |
|
¡@ |

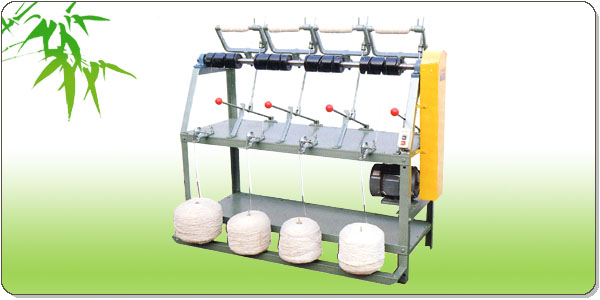

BOBBIN WINDER CYM-018W
|
| Description: |
|
| SPINDLE
SPEED |
1,290 R.P.M. |
| HORSEPOWER |
1/4 HP |
| N.W. |
78 KGS |
| G.W. |
108 KGS |
| MACHINE
SIZE(LxWxH) |
54"x22"x45" |
| PACKING SIZE
(LxWxH) |
55"x31"x51" |
|
¡@ |
BAMBOO & WOOD BLIND WEAVING MACHINE
CYM-020
¡@ |
| Description: |
|
| SPECIFICATION |
6' |
8' |
10' |
12' |
| PRODUCTIVITY |
4.17-6.25SQFT/MIN. |
4.17-6.25SQFT/MIN. |
4.17-6.25SQFT/MIN. |
4.17-6.25SQFT/MIN. |
| HORSEPOWER |
2HP |
2HP |
2HP |
2HP |
| N.W. |
600KGS |
800KGS |
1000KGS |
1,200KGS |
| G.W. |
900KGS |
1,100KGS |
1,300KGS |
1,500KGS |
| MACHINE SIZE
(LxWxH) |
110"x147"x100" |
134"x147"x100" |
158"x147"x100" |
182"x147"x100" |
| PACKING SIZE
(LxWxH) |
118"x79"x65" |
142"x79"x65" |
185"x79"x65" |
209"x79"x65" |
|
¡@ |
WOOD STICK MAKING MACHINE
CYM-005W
¡@ |
| Description: |
|
| SPINDLE
SPEED |
5,500 R.P.M. |
| HORSEPOWER |
3HP + 3HP |
| N.W. |
320KGS |
| G.W. |
385KGS |
| MACHINE SIZE
(LxWxH) |
48"x27"x40" |
| PACKING SIZE
(LxWxH) |
54"x31"x47" |
|
¡@ |
WOOD WIDTH SIZING MACHINE
CYM-016W
|
| Description: |
|
| SPINDLE
SPEED |
3,440 R.P.M. |
| HORSEPOWER |
15HP + 1/2 HP |
| N.W. |
400KGS |
| G.W. |
480KGS |
| MACHINE SIZE
(LxWxH) |
51"x43"x63" |
| PACKING SIZE
(LxWxH) |
62"x50"x76" |
|
¡@ |
