卡車式高空作業車

TTS 840 & 100

STEIGER ® flagships



The sum of the RUTHMANN features makes STEIGER ® aerial platforms unbeatable in their class. The platforms have an exceptionally large operating range and movable jib (RÜSSEL®) which make it possible to overcome obstacles at difficult job sites. Our machines provide a feeling of safety and security, even when working at great heights.



Top quality is not a luxury but a question of survival when working high off the ground.  Therefore, we at RUTHMANN, believe that uncompromising quality is an obligation.



　

　

　

　

　

　

　

　

 　

　
 STEIGER ® flagships





　

　
RUTHMANNSTEIGER ®

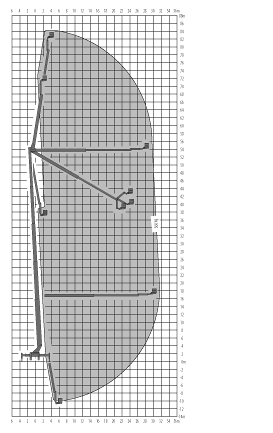

 TTS 840

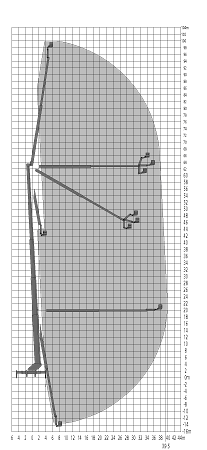

 TTS 1000
Working height:

84,40 m

 100,40 m
Lifting height:

82,40 m

 98,40 m
Lateral outreach:

32,00 m

 40,00 m
Range of rotation:

450°

 450°
Swivelling angle of the RÜSSEL® (jib):

 160°

 160°
Working cage size:

2,00 x 1,00 m

 2,50 x 1,00 m
Maximum working cage size:

 3,50 x 1,00 m

 4,00 x 1,00 m
Working cage load:

500 / 320 kg*

 500 / 320 kg*
Permissible inclination:

0°

 0°
Permissible total weight starting at:

ab 48.000 kg

 ab 80.000 kg



　

　

* depending on load and outfit

** telescope upper boom fully out
*** when cage is telescoped


　
 STEIGER ® TTS 840 / TTS 1000







　
