卡車式高空作業車

卡車式高空作業車

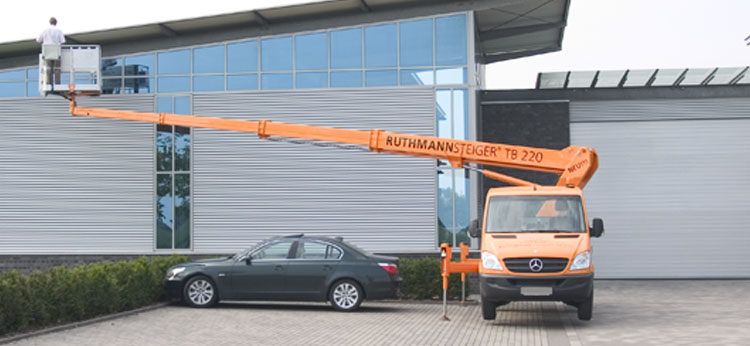

TB 220

STANDARD DESIGN
Example:

- Vehicle engine start/stop mechanism.
- Easy-to-use emergency control with information
and diagnostic system.
- Aluminium working cage.
- Cage, rotation and exchanging devices.
- Robust swivelling device (2 x 250°).
- Hand pump for emergency use.
- Hydrostatic cage levelling control.
- Interior power control.
- Aluminium sidewalls.
- 2 loops for safety belts.
- Automatic positioning system.
- Automatic return-to-basic-position feature.
- Memory function.
- High-quality paint finish.
- CE mark, EC declaration of conformity.

OPTIONS
Example:

- Limitation of telescopic extension
(height deactivation).
- Support plates (with brackets).
- Polyester working cage with insulation
against 1,000 volts.
- Working cage for tree trimming.
- Removable safety fence.
- Safety guard over driver’s cab.

　

STEIGER ® T-Series up to 30 m

For protection against falling branches, the driver’s cab can be equipped with a safety guard or cover.
Tree trimming cage, standard aluminium cage or polyester cage: the proper equipment for every application imaginable.

Depending on the application, the cage divider which separates the operator of the working cage from the operator of the power saw can be taken out and mounted on the vehicle.

A flashing light on the boom carrier support ensures that the extended unit is noticed well ahead of time by traffic approaching from behind.

　

RUTHMANNSTEIGER ®
TB 220

Working height:
22,10 m

Lifting height:
20,10 m

Outreach:
14,00 m*

Range of rotation:
450°

Working cage size:
1,40 x 0,70 m

Working cage load:
200 kg

Total height:
3,00 m

Total length:
7,20 m

Permissible inclination:
5°**

Permissible total weight starting at:
ab 3.500 kg

* depending on load, angle of rotation and outfit

**with restriction of performance data

　

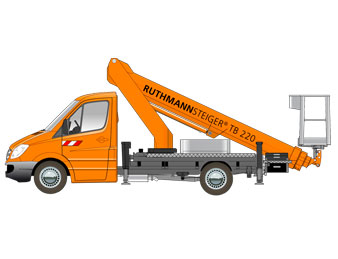

STEIGER ® TB 220
