方型牧草包膠膜機

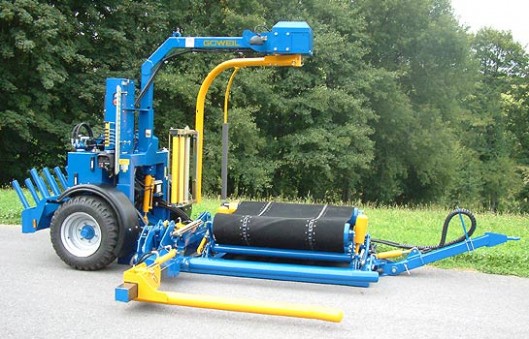

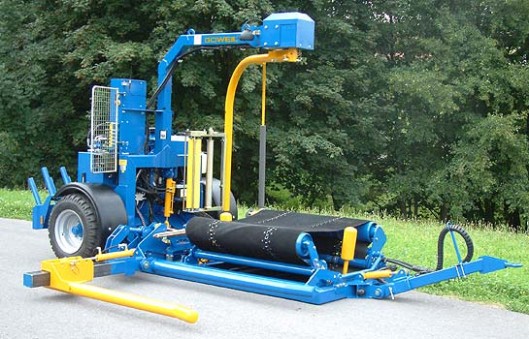

G 3020 Q PROFI
Square
bale wrapper - the G3020 Q Profi, with the lateral bale pick-up, is an excellent
square bale wrapper out on the field. Thanks to the PROFI control program, all
cycles are done automatically.
LATERAL BALE
PICK-UP
The G3020 Q
Profi picks up the bale on the right in the driving direction.
|
ROUND AND
SQUARE BALES
Thanks to the
lateral bale pick-up it is possible to wrap round and square bales.
|
FULLY
AUTOMATIC PROGRAM CONTROL PROFI WITH RADIO REMOTE CONTROL
The wrapping
cycle is fully automatic. All functions can be set directly on the radio
remote control (range up to 300 m)
|
FILM MAGAZINE
Storage for
sixteen rolls of film.
|
MANUAL
OPERATION
All the
functions can also be operated directly with the hand levers on the
machine.
|
|
Basic
Equipment :
- Hydraulic tilting table with mechanical belt length adjustment
- Wide, continuous bale conveyor belt with belt guide and 2 bale guide
rollers
- Bale deposit to the left
- Combined film stretching unit 500 mm and 750 mm
- Light and indicator system, working headlight
- Automatic film cutting and holding system
- Bale pick-up for square and round bales
- Bale pick-up on the right hand side with the direction of travel
- Lift axle and drawbar for lower linkage link
- Storage for 16 rolls of film
- Tyres 15.0/55-17AW
- Feed rate shut-off valve:
This ensures that the film will overlap accurately for rectangular bales
- Fully automatic program control PROFI
The entire cycle is automatically fully completed
Additional Equipment :
- Tyres 500/50-17
Width altered to 2,525 mm
- Additional bale guide roller per unit
- Film monitoring
Stops the wrapping process if film tears appart or runs out
- RUGGERINI diesel engine (without hydraulic oil)
Air-cooled, 2-cylinder engine, 11.4 kW, including battery, generator and
electric starter
as well as hydraulic system fully assembled
- KUBOTA diesel engine (without hydraulic oil)
Water-cooled, 3-cylinder engine, 17.5 kW, more powerful hydraulic pump, hour
counter
and electric starter
- Diesel engine speed control
Automatically switches to idle speed after the wrapping process or extended
intervals
- Radio remote control
- Additional pipe for bale pick-up
Is required when two single bales (up to 0.60 x 0.90 m) are loaded in
sequence
in order to wrap a double bale
- Twin bale pick-up
Is required when two single bales (up to 0.50 x 0.80 m) are loaded stacked
at once
in order to wrap a double bale
- Axle suspension
- Dual-line air brake system
- Hydraulic brake system with accumulator and breakaway quick-closing device
- Hydraulic brake system without accumulator and breakaway quick-closing
device
- Battery supply cable 5.3 meters 2x6 mm² with 3-pin power outlet
- Beacon light
規格說明 :
- Weight: 2.150 kg
- Length: 5.450mm
- Width: 2.400 mm
- Height: 3.150 mm (with the lift axle extended)
- For all bale dimensions up to 1.20 x 1.20 m, bale length up to 1.60 m
- Round bale diameters between 0.90 - 1.50 m
Required connections:
- 1 pressure connection and one depressurized return for the supply of the
wrapper
- 3-pin power outlet for the electrical supply including direct supply line
to the battery
(cable cross-section 2x6 mm²)
- 7-pin power outlet for the entire lighting system, excluding working
headlights
