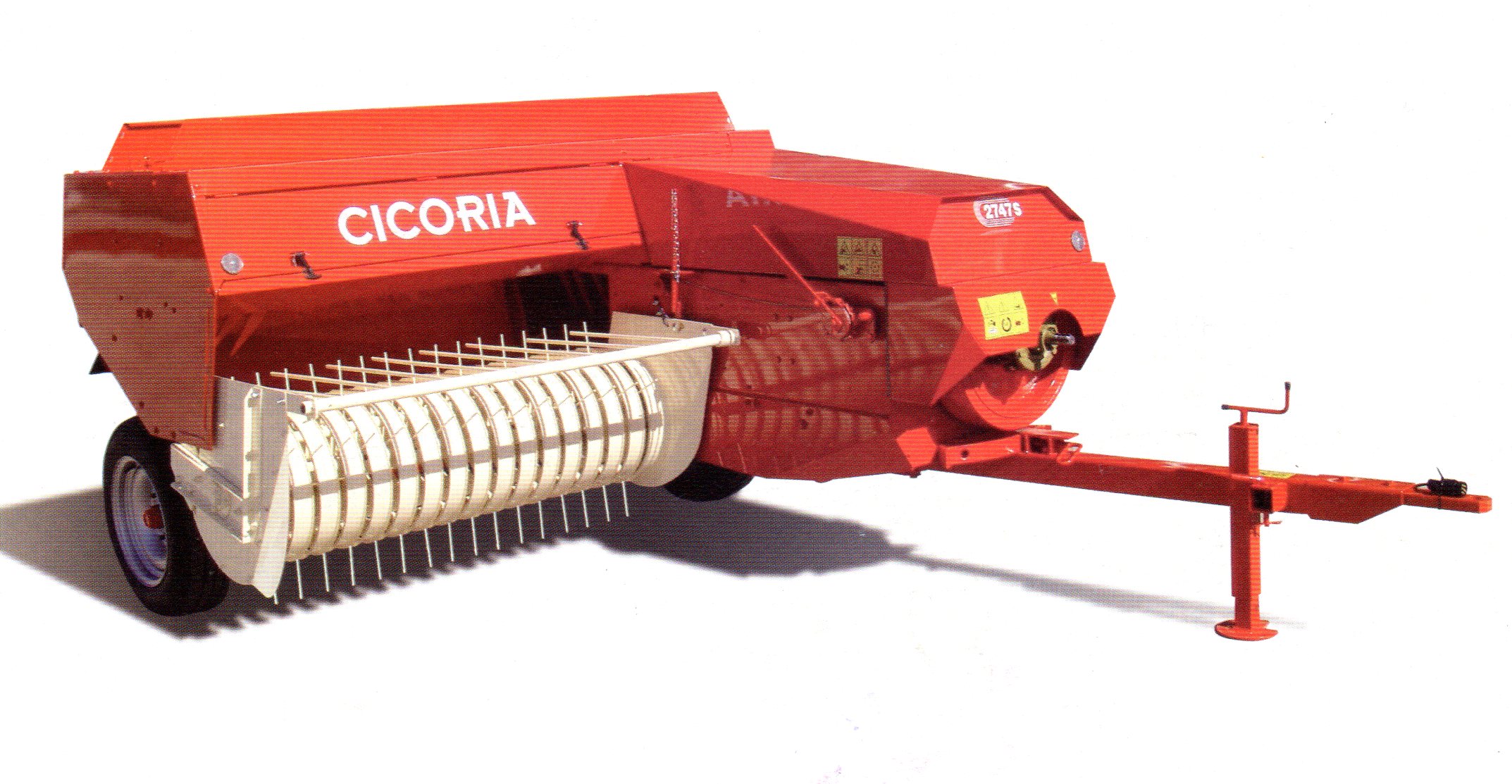

方型牧草打包機

( 可切碎功能 )

 Model 2545  2547 2747  2749  8747  8749  TP2747 TP2749
OUTPUT BALES

Height x Width (cm)

 35x47 35x47 35x47 37x47 37x49 37x47 37x47 37x49

Adjustable Length (cm)

 40-130 40-130 40-130 40-130 40-130 40-130 40-130 40-130

Bale Weight (kg)

 18-30 18-30 24-48 25-50 24-48 25-48 24-48 25-50
KNOTTING SYSTEM

Knotters

 2 2 2 2 2 2 2 3

Type

 twine twine twine-wire twine-wire twine-wire twine-wire twine twine
PICK-UP

Working Width (cm)

 140 160 160 160 180 180 160 160

Tine Bars

 4 4 4 4 5 5 4 4

Tines

 56 64 64 64 90 90 64 64
PLUNGER on bearings

Strokes/minute at 540 rpm

 88 88 88 88 88 88 88 88

Stroke Length (cm)

 71 71 75 75 75 75 75 75
FEEDING by 2 forks

Opening (cm2)

 1640 1640 1850 1850 1850 1850 1850 1850
BALER DIMENSIONS

Length (cm)

 445 445 485 485 485 485 485 485

Width (cm)

 210 240 240 240 260 260 250 250

Height (cm)

 155 155 160 160 160 160 180 180

Weight (kg)

 1200 1250 1375 1450 1500 1575 2000 2050
TRACTOR REQUIREMENTS

Power at PTO (HP/KW)

 30/22 34/25 39/29 45/33 50/37 55/40 54/40 60/44
