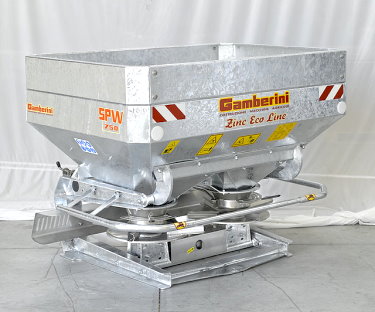

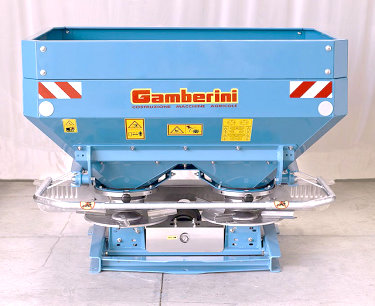

化學肥料施肥機

TECHNICAL CHARACTERISTICS

• Tubular steel frame light construction cold galvanized
• Double cone shaped hopper construction, hot galvanized
• Aluminium gear box with gears in oil bath lubricated

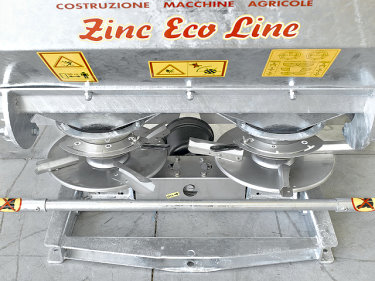

• Spreading disc with 4 adjustable vanes
• Standard agitator
• Filtering grill
• Cardan shaft supplied on demand
• Manual lever to operate flow control opening
• Manual lever for RH / LH spreading selection
• Hopper capacity 280 kg

Code	Model
S.05.20	SPW 500
S.05.30	SPW 750

ACCESSORIES ON REQUEST

Code	Description
C.015	Spreader trolley "Standard Tray" with adjustable pitch widh from 1,2 to1,8 m.
C.018	Cardan joint 1400 mm long, suitable for spreader on trailer
C.040	Painted, double conveyor for localized fertilization on 2 rows
C.041	Hot galvanized, double conveyor for localized fertilization on 2 rows
C.043	AISI 304 stainless steel double conveyor for localized fertilization on 2 rows
F.006	Double flexible cable L = 2,5 m. for remote control
I.003	Double hydraulic opening
K.000	Lighting kit
R.033	N° 3 small wheels for manual handling when dismounted
T.006	Rain proof hopper cover
Z.006	Hot galvanized hopper
Z.020	Hot galvanized hopper and frame

TECHNICAL DATA


Model	SPW 500	SPW 750
Spreading system	Double spinner disc
Moving machine	Mounted
Hopper volume	515 litres	690 litres
Application rate	3,5 he / h
Overall dimensions ( WxLxH )	140 x 97 x 90 cm.	140 x 97 x 108 cm.
Machine mass empty	180 kg	195 kg
Spreading width	16 ÷ 24 m.
Minimum power tractor	40 HP	55 HP
Cardan shaft revolution	540 rpm
Suitable fertilizer type	Chemical granular, powdered, pellet fertilizers
