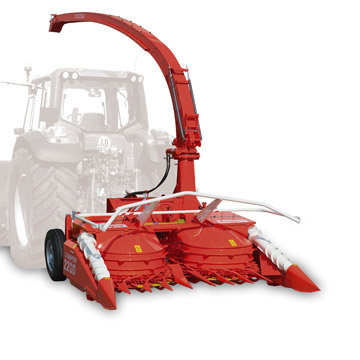

Champion C 2200

前置式

後置式

With pick-up

Cutting length adjustment by 4-speed transmission.

Chopping length (mm)

Gear

1

2

3

4

12 blades

4.3

5.4

6.5

11

6 blades

8.6

10.8

13

22

4 blades

12.9

16.2

19.5

33



Type

C 2200 Forage harvester

with rotary header

With pick up

Length

2.55 m

2.15 m

Width

2.35 m

3.40 m

Height
Working pos.

4.20 m

4.20 m

Transport height

3.70 m

3.70 m

Working width

2.28 m

2.00 m

Power requirement

80 kw

50 kw

Weight approx.

2050 kg

1500 kg

PTO speed

1000 rpm

1000 rpm

Row distance

Row independent

Optional equipment

  • Row independent harvesting head
  • Pick–up
  • Serrated knives
  • Extra crusher plate
  • Hydraulic side shift
  • Support wheels
  • Metal detector
  • Height adjustable crop lifters
  • Rigid crop lifters
  • Remote control for front attachment
