Legacy XL

FIVE models, EACH AVAILABLE WITH 3 MOWER WIDTHS
The Legacy XL, compact tractor toughness with the comfort and control of Simplicity's best garden tractor. Choose 2- or 4-wheel drive models and a variety of attachments. Power? A choice of three 27-hp engines will do the trick. And, you'll get the best cut in the business with your choice of 48-, 54- or 60-inch Free Floating™ mower deck with full width rollers.

Legacy XL features


  • legacy XL with Flail Attachment
    Choose from three powerful 27-hp engines
  • Automatic Controlled Traction™
  • Differential lock
  • Internal "wet" disc brakes
  • Internal hydraulic PTO for all mowers, front- and rear-attachments.
  • Shift between 2- and 4-wheel drive on-the-go. (4-WD models only)
  • External transmission oil cooler and cooling fan
  • Large 1-5/32-inch rear axles handle up to 1800 lbs of axle weight.
  • 4-way joystick attachment control
  • Two-spool hydraulic system with quick connects standard for easy attachment operation
  • Control attachment lift function between front or rear attachments with solendoid driverter valve system


The front-end loader features a 500-lb. lift capacity and a "Walk On/Off" design. Use the 4-way joystick control to easily disconnect the loader from the tractor without leaving the tractor seat. Loader operates with mower installed.

The Legacy XL is available with 48-, 54- and 60-inch mower decks. Any size mower can be matched with any engine choice! All mowers are shaft-driven and Free Floating™ with full-width rollers.
LEGACY XL SubCompact Garden Tractor Specifications
  27 2WD 27 2WD 27 4WD XL 27 4WD 27 4WD
ENGINE Exclusive engines for Simplicity run quiet and are easy to start. Large fuel tank and wide fuel filler neck mean longer run times & no mess fueling.
Make/Model Kohler/Command™ V-Twin Kawasaki/LC V-Twin Kohler/Command™ V-Twin Kawasaki/LC V-Twin Briggs & Stratton/Diesel Fl
Horsepower / # of Cylinders 27 / 2
Step Up
27 / 2
27 / 2
Step Up
27 / 2
Step Up
27 / 3
Muffler High Performance High Performance High Performance High Performance High Performance
Choke/Throttle Separate Levers Separate Levers Separate Levers Separate Levers Glow Plugs/Throttle
Fuel Tank Capacity 5.5 U.S. Gal. 5.5 U.S. Gal. 5.5 U.S. Gal. 5.5 U.S. Gal. 5.5 U.S. Gal.
Battery (cca) Front Mounted, 500cca Front Mounted, 500cca Front Mounted, 500cca Front Mounted, 500cca Front Mounted, 500cca
trANSmission Tuff-Torq hydrostatic transmission with integrated pump and transaxle, differential lock, and Automatic Controlled Traction™.
Type K-92 Hydro (2WD) K-92 Hydro (2WD)
Step Up
K-92 Hydro w/4WD
K-92 Hydro w/4WD K-92 Hydro w/4WD
Speed-Fwd. (mph) 0-9 0-9 0-9 0-9 0-9
Speed-Rev. (mph) 0-5.5 0-5.5 0-5.5 0-5.5 0-5.5
chassis Rigid, heavy-duty "C" channel frame with cast iron pivoting front axle.
Frame 7 Gauge Steel 7 Gauge Steel 7 Gauge Steel 7 Gauge Steel 7 Gauge Steel
Front Axle Pivoting Cast Iron Pivoting Cast Iron Pivoting Cast Iron Pivoting Cast Iron Pivoting Cast Iron
Rear Axle Diameter (inches) 1.15625 1.15625 1.15625 1.15625 1.15625
Turning Radius (in) 28 (2WD) 28 (2WD) 55(4WD engaged)
35 (disengaged)
55(4WD engaged)
35 (disengaged)
55(4WD engaged)
35 (disengaged)
Front Turf Tread Tires 18 x 8.5-8 (4 ply) 18 x 8.5-8 (4 ply) 18 x 8.5-8 (4 ply) 18 x 8.5-8 (4 ply) 18 x 8.5-8 (4 ply)
Rear Turf Tread Tires 26 x 12-12 (4 ply) 26 x 12-12 (4 ply) 26 x 12-12 (4 ply) 26 x 12-12 (4 ply) 26 x 12-12 (4 ply)
Attachment Lift Hydraulic, 4-way joystick Hydraulic, 4-way joystick Hydraulic, 4-way joystick Hydraulic, 4-way joystick Hydraulic, 4-way joystick
Seat 18" Super High Back 18" Super High Back 18" Super High Back 18" Super High Back 18" Super High Back
mower deck True Free Floating™ mower deck with full width rollers and infinite height-of-cut. A cut that can't be beat.
Cutting Width (inches) 48, 54 or 60 48, 54 or 60 48, 54 or 60 48, 54 or 60 48, 54 or 60
Height-of-cut (inches) 1.0 - 5.0 Infinite 1.0 - 5.0 Infinite 1.0 - 5.0 Infinite 1.0 - 5.0 Infinite 1.0 - 5.0 Infinite
# of Blades 3 3 3 3 3
Rear Rollers Full Width, Follows Contours, Allows Striping Full Width, Follows Contours, Allows Striping Full Width, Follows Contours, Allows Striping Full Width, Follows Contours, Allows Striping Full Width, Follows Contours, Allows Striping
Gauge Wheels (Pivot for Removal) Front, Standard Front, Standard Front, Standard Front, Standard Front, Standard
Mower Removal 2 Quick Pins 2 Quick Pins 2 Quick Pins 2 Quick Pins 2 Quick Pins
features Adjustable seat, natural position foot pedal design, easy to read gauges and cruise control are standard features.
Cruise Control Standard Standard Standard Standard Standard
Power Steering Standard Standard Standard Standard Standard
Tilt Wheel Steering Standard Standard Standard Standard Standard
Headlights Standard Standard Standard Standard Standard
Hourmeter Standard Standard Standard Standard Standard
Fuel Level Indicator, Gauge Standard Standard Standard Standard Standard
PTO Switch Standard Standard Standard Standard Standard
12 Volt DC Outlet Standard Standard Standard Standard Standard
Cup Holder Standard Standard Standard Standard Standard
Tool Box Standard Standard Standard Standard Standard
Hand Grips Standard Standard Standard Standard Standard
Parking Brake Standard Standard Standard Standard Standard
dimensions
Length x Width* x Height (inches) 81 x 44.75 x 51 81 x 44.75 x 51 81 x 44.75 x 51 81 x 44.75 x 51 81 x 44.75 x 51
Wheel Base (inches) 58.5 58.5 58.5 58.5 58.5
Weight (lbs) (Tractor only) 830 880 980 1030 1131





Garden Tractors Yard Tractor Lawn Tractors Riding Mowers
  Attachment Legacy XL Prestige Conquest Broadmoor Regent Coronet
  Turbo Collection System 10, 17 bu 6.5, 10,
17 bu
6.5, 10,
17 bu
6.5, 10,
17 bu
6.5 bu
CleanSweep™ Twin Catcher   6.5 bu* 6.5 bu* 6.5 bu* 6.5 bu* 6.5 bu
CleanSweep Triple Collector 10 bu 10 bu 10 bu 10 bu (44",
50" mower)

Wide Body Cart Collector 17 bu 17 bu 17 bu 17 bu
Mulcher/Leaf Shredder Kit 54" 50", 54" 44", 50", 54" 38", 44", 50" 38", 44", 50" 34"
Dethatcher   35" 35" 35" 35" 35"
Tiller 50"
(Shaft Dr.)
36" 36"
Dump Cart 10 cu ft 10 cu ft 10 cu ft 10 cu ft 10 cu ft 10 cu ft

Dozer Blade 60" (Hyd.) 42" 42" 42" 42" (Snow)
Two-Stage Snowthrower 47"
(shaft drive)
42" 42" 42"
Single-Stage Snowthrower 46"
(shaft drive)
42", 46" 42", 46" 42", 46" 36", 42"
Snow Cab Soft Side/
Deluxe Hard Side
Soft Side Soft Side Soft Side Soft Side
Front-End Loader with 48" Bucket X
Tire Chains/Weights X X X X X
Hitch for Tillers, Box Scraper, Back-hoe, Rear Grading Blade, Post Hole Digger, Plows & Drags 3-Point
Category 1(modified)
1-Point (Moldboard Plow)

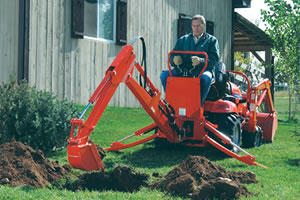

Back-Hoe X
Box Scraper X
Rear Grading Blade X
Post Hole Digger X
Rear Rotary Field Mower X
