翻(集)草機









Tedder & Rake

ART3200

Is the spring broken frequently?
Is it not dangerous owing to a wide width of the
      machine, when it drive?
are soils splattered awfully?
Is it possible to use only one bailer from small size
      bailer to large one?
Does it rake up straws clearly?

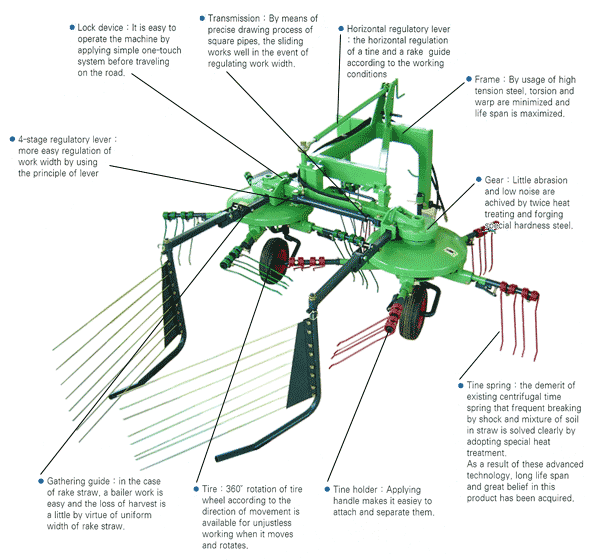

A tine holder is designed for easy combination and separation, and the time is for enduring shock and long life span.



It is designed in the same direction of tractor in consideration of safety, when it travels on the road or narrow spaces.(Transmission 90' rotation)



Rake work for putting straw together cleanly and neatly by a guide.











Easy change of a work width by oli pressure cylinder.



The changes of rake and reversal work by the direction change of cam track.











Model

ART3200

ART4200

Length

3,150mm

3,950mm

otal Width

3,265mm

4,300mm

Total Height

1,170mm

1,280mm

Weight

318kg

400kg

Number of Blade

2EA

2EA

Number of Blade

20EA

20EA

Working Width

320cm

420cm

P.T.O (Power take-off)

540rpm

540rpm

Power required

21ps ↑

35ps ↑

This specifications are subject to alteration without notice for improving quality
