拖曳式-牧草割草機 (附壓扁設備 )

Swing 系列

　

　

Founded in 1946, the company Marangon SRL is specialized in designing and manufacturing mowers and mower conditioner marketed throughout the world.

It is the experience of over 60 years to enable us to meet the needs of a sophisticated  market demand  and be one step ahead, focusing on the quality made in Italy

What makes  of Marangon a serious company  is not only the ability to produce quality and innovation, but also know how to project itself in the future supporting values rooted in the time like professionalism, quality, reliability and customer care.

The company has set itself the target to improve through constructive dialogue, and through a close collaboration with the agricultural word its own technology. This proximity ensures that customer

requirements are implemented and integrated into the development process.

　The result is an effective functionality of our mowers for an intelligent agricultural technology which  focuses on the quality of the forage, a factor that characterizes  the success of a farm operator.

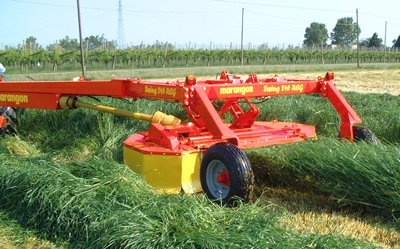

Mower driven by the lower arms of the third point of the tractor with the dual advantage of having the tool driven and not bound to the third point of the tractor and the ability to vary the height in all conditions. The gearbox allows a large rotary angle when handling. The primary transmission is made in an oil bath gearbox and the secondary by gears. The cutting height adjustment is done by registering through the crank. The front linkage type enables the driven mower to follow the soil profile with extreme precision and smooth over bumps and dips decreasing the risk of damage to the cutter bar. The mower is equipped with a self-leveling suspension. The double spring suspension allows an optimal adjustment of the weight of the mower on the ground ensuring a clean cut and any damage at the turf. Equipped with swath squeeze kit that allow the formation of a central or a side swath.

規格說明

SWING 245RCF 285RCF 320RCF 245RCG 285RCG 320RCG

工作寬度

 242 284 318 242 284 318

刀盤數目

 6 7 8 6 7 8

刀片數量

 12 14 16 12 14 16

PTO轉速

 540/1000 G/' 540/1000 G/' 540/1000 G/' 540/1000 G/' 540/1000 G/' 540/1000 G/'

所需公作馬力 Kw/HP

 40/60 60/70 70/80 40/60 60/70 70/80

機氣重量 kg

 1200 1350 1600 1250 1400 1650

配件設備

 Whip Whip Whip Roller Roller Roller

輪胎規格

 10.0/75-15.3 10.0/75-15.3 10.0/75-15.3 10.0/75-15.3 10.0/75-15.3 10.0/75-15.3

　

　

如需詳細規格請洽本公司索取
