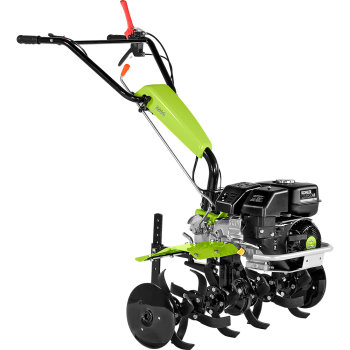

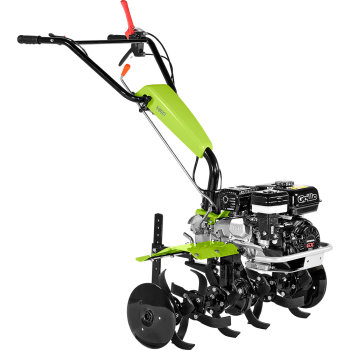

Walk behind hoes designed with agility and strength to meet up to a professional standard for commercial use and bigger jobs.
Technical data sheet WE-3500

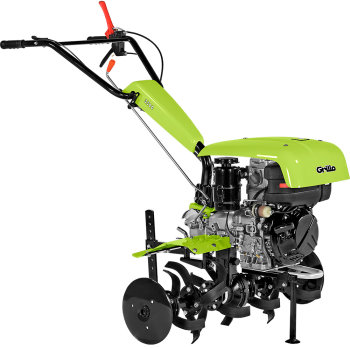

Engine Lombardini 15LD225
Start recoil starter
Supply diesel
Displacement 224 cc, 1 Cylinder
Power 4.8 HP (3.5 kW)
Air cooled
Oil bath air filter
Engine Honda GX160 OHV
Start recoil starter
Supply fuel
Displacement 163 cc, 1 Cylinder
Power 4.8 HP (3.6 kW)
Air cooled
Oil bath air filter
Engine Robin Subaru EX17 OHC
Start recoil starter
Supply fuel
Displacement 169 cc, 1 Cylinder
Power 5 HP (3.7 kW)
Air cooled
Dry air filter with interchangeable filter cartridges
Engine Kohler Lombardini 3000 Series OHV
Start recoil starter
Supply fuel
Displacement 196 cc, 1 Cylinder
Power 5.5 HP (4.1 kW)
Air cooled
Dry air filter with interchangeable filter cartridges
Fuel tank capacity 3,1 L eng. GX160 OHC - 3,6 L eng. EX 17 - 3,6 L eng. SH265 - 3,0 L eng. 15 LD 225
Drive with oil bath gears
Gearbox 2 forward gears + 1 reverse gear
Clutch conic active

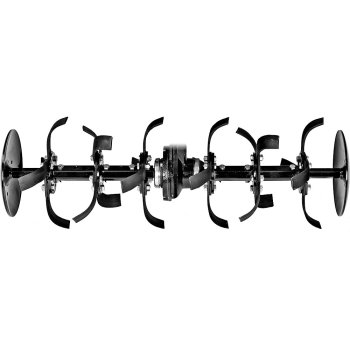

Standard rotary tiller With 6 hoes system and side discs, working width 99 cm. With hexagonal shaft 2,7 cm
Hoes system diametre 33 cm
Working width area with side disks Adjustable at 72 and 99 cm ( 125 cm with extension kit cod. 933112)
Working depth area without side disks Adjustable at 58 and 85 cm ( 111 cm with extension kit cod. 933112)
Working depth 32 cm
Max. revolutions tiller 1st gear 53 rpm ¡V 2nd gear 123 rpm ¡V reverse gear 53 rpm

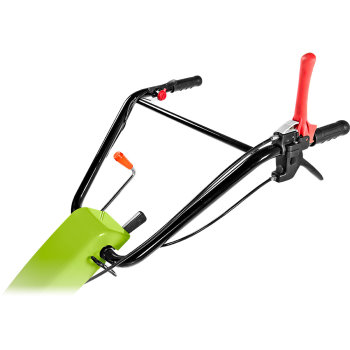

Handlebar height and side adjustment
Weight 93 kg with eng. 15 LD 225 - 78 kg with eng. GX160 OHC - 80 kg with eng. EX 17 - 81 kg with eng. SH265



Implements WE-3500

Cowling Kit engine

to be applied on 3500
item no.: 9B6411
weight: 3 kg

Rotary tiller extensions 3500 (pair)

to be applied on 3500
item no.: 933112
weight: 7 kg

Single furrow plough - item no. 945322 needed, pneumatic wheels 5.00-12 and wheel weights are recommended

to be applied on 11500 - 2500 - 3500 - G 107D - G 108 - G 110 - G 85 - G 85D
item no.: 943122
weight: 12 kg

Turn-wrest plough 180¢X

to be applied on 11500 - 2500 - 3500 - G 107D - G 108 - G 110 - G 131 - G 85 - G 85D
item no.: 943222
weight: 21 kg

on motorhoes item no. 950522 needed;



on walking tractors item no. 945322 needed; we recommend 5.00-12 wheels and wheel weights

Frame for attachments for plough (item no. 900412 and item no. 9C4312 needed)

to be applied on 11500 - 2500 - 3500
item no.: 950522
weight: 7 kg

Adjustable furrower (item no. 942722 needed, 5.00-10 pneumatic wheels and wheel weights item no. 9G1212 are recommended)

to be applied on 11500 - 2500 - 3500 - G 55
item no.: 942622
weight: 8 kg

Pneumatic Tractor wheels 5.00-10 (adjustable disks); pair

to be applied on 11500 - 2500 - 3500 - G 107D - G 108 - G 110 - G 55 - G 85 - G 85D - GF 3 - GF 3DF
item no.: 900412
weight: 22 kg

The adjustable discs permit to modify the external width of the wheels according to the type of labour to be done.



On walking tractor G55 they can be mounted only when using plough or furrower.



Item 9C4312 (wheels extensions) is needed on 2500, 3500, 11500 rotavators equipped with plough.

Wheelextensions (pair)

to be applied on 11500 - 2500 - 3500
item no.: 9C4312
weight: 4 kg

Transport wheels for rotavator  Ù 42 cm (pair)

to be applied on 11500 - 2500 - 3500 - Princess M1 - Princess MP3 - Princess MP3 PRO - Princess MR
item no.: 9C7522
weight: 7 kg

Liftable front transport wheel for EX17, 15 LD225/350, with recoil starter

to be applied on 11500 - 2500 - 3500
item no.: 9B5611
weight: 3 kg
