手指型(轉輪)集草機

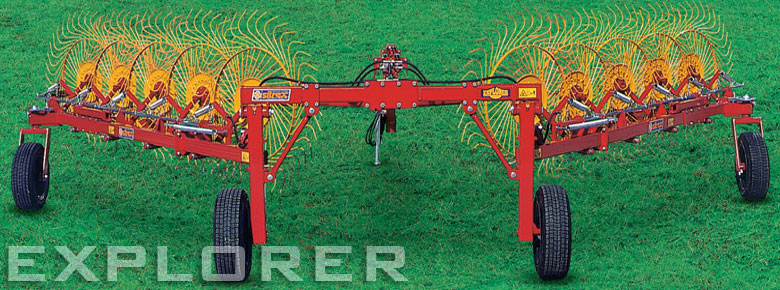

EXPLORER
The Sitrex EXPLORER Pull - Type V- Rake is a medium size
V-Rake. This machine is designed to obtain a maximum working width of 23'3"
and windrows widths adjustable from 3" to 5'. The drawbar and the opening
system are mounted over the wheels this allows to make a windrow without
hindrances with the components of the machine. All rake wheels are spring-load
lifted independently and this allows the machine to follow the ground contours.
Tines are made of special steel with 7mm. diameter. Tines pick up the hay making
fluffy windrows very suitable for baling.
A double hydraulic system, tractor driven, controls both the wheels lift and the
machine total or partial opening and closing.
On the hydraulic cylinder, which controls the opening and closing of the
machine, is mounted a locking valve to maintain the required working width. Even
in case of pipe breaking the machine remains in the same position which has been
set.
機 型 | MX 8 | MX 10 | MX12 |
所需工作馬力 HP以上 | 30 | ||
轉輪數 | 8 | 10 | 12 |
手指叉數 / 每轉輪 | 40 | ||
工作速度 km/hr | 22.5 | ||
道路行走寬度 m | 2.5 | ||
輪胎規格 | 205-65/15 | ||
機器重量 kg | 1520 | 1370 | 1520 |
最大工作寬度 m | 5.3 | 6.2 | 7.1 |
