Spraying Watering Hose

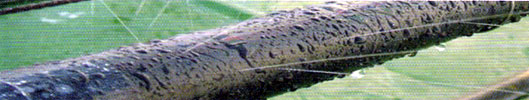

GoldenSpray is the spray watering system that consists of a flat, flexible hose that can be easily installed at furrow. It's more efficient than traditional spraying systems or hard hose drip systems. Since it lays out flat and straight without coiling, installation takes less time and less cost than other systems, which in turn bring you more crop yield at a cheaper cost.
* Advantages & benefits
Normal pressure operating range of
0.1 to 0.5 kg/㎠ can lower energy and save
sprinkler system cost by 90%

Lays out flat and straight without coiling up like
hard hose, making for faster and easier
installation and retrieve in the field

Easy moving anywhere

Wide range of spray patterns and trajectory

High performance & easy installation

Easy to eliminate on clogging

* Flow Rate ( Golden Spray A )
Water Pressure (kg/㎠) 0.5 0.5 0.5 0.5
Hose Length (m) 10 30 50 80
Flow Rate (LPM) 16 50 75 118
Type Tube
Width
(MM)		 Distance
of Spray
(within, M)		 Operating
Pressure
(bar)		 Wall
Thickness
(MM)		 Roll
Length
(M/Roll)
GoldenSpray A 60 6 0.5 0.2 200
GoldenSpray B 60 3 0.5 0.2 200
GoldenSpray C 40 3~5 1 0.3 100
GoldenSpray D 60 10 1 0.35 100

* Other roll length and specifications are available to meet customers' needs.
Any OEM specification is acceptable.
