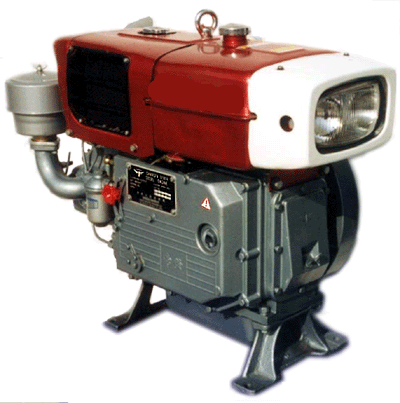

Single Cylinder-Diesel Engine ( Water Cooled )

     ZS1105GN

     ( 18 HP )



Model ZS1105GN lubrication system Combined Pressure and Splashing
Type Horizontal 4-stroke Starting system Hand cranking
Combustion system direct injection Net Weight 158 kg
Bore ¡Ñ Stroke(mm ¡Ñ mm) 105 ¡Ñ 115 mm Power output axis ¡@
Total displacement(L) 0.996 L Operation direction of output axis ¡@
Compression ratio 17 Fuel/lubricate¡G ¡@
Rated output 12.13 kW( 16.5 HP) 2200 r/min Volume of oil tank 14.5 L
Max output 13.34 kW( 18.0 HP) 2200 r/min Volume of lubricate 3.10 L
Specific fuel 246.2 g/kW.h

Recommended starting system

¡@
Cooling system consumption Hopper overall dimensions (L¡ÑW¡ÑH)(mm) 858 ¡Ñ 450 ¡Ñ 699

¡@

¡@

¡@

¡@
