方型牧草包切碎機

2 & 4 & 6





一次二行(4)

一次二行(6)



Description

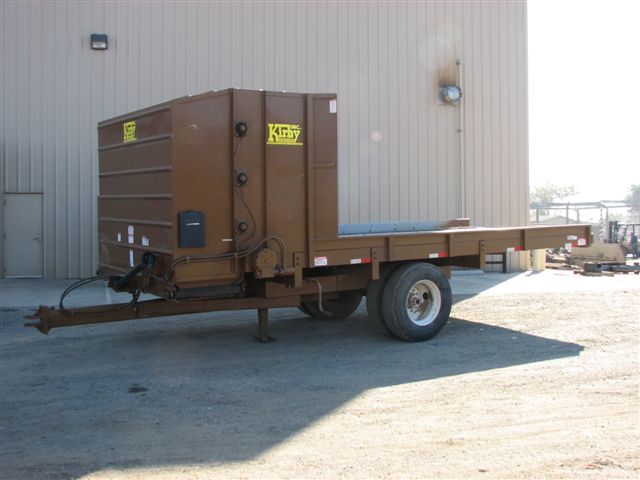

Kirby’s One-Ton Bale Processor is simple to use, durable, and easily maintained, which makes it the most efficient feeding machine on the market. One person can hook up this bale processor to a tractor and begin turning bales of hay into a palatable feed in half the normal time. The variable speed floor drag chain ensures a consistent flow of hay into the beaters. Designed for longevity, each beater blade is serrated to its base on both sides. With this reversible feature, the blades may be used twice as long, before being replaced. A unique safety feature of the Kirby Bale Processor is its pressure relief valve that is built into the floor speed control. This valve protects your equipment by hydraulically bypassing (stopping) the floor drag chains if the pressure becomes too great on the beaters. This allows the beaters to clear the feed, which relieves the pressure, then the floor automatically starts again. With a commitment to quality and excellence, Kirby equipment is constructed for durability and designed for quick and easy servicing.

Standard Equipment

  4 - 6 Bale Processors
  Single Axle Trailer
  Dual Truck Tires
  Reversible Hydraulic Floor Drive & Variable Speed & Pressure Relief Valve
  Three Round Beaters with Serrated Knives
  Right Hand 30" Belt Cross feed
  Wind Guard
  Belt Cleaner
  540 RPM Heavy Duty PTO
  2 - Bale Processors
  12.5L x 16 12-ply Tires
  2-Floor Drag Chains

Specifications

Equipment Type  2 Bale 4 Bale 6 Bale
Floor Chains - 30 2-D667X 4-D667X 4-D667X
Floor Drive Shafts 2" 2" 2"
Beater Drive Shaft 2" 2" 2"
Hydraulic Chain Beater Drives 80 H 80 H 80 H





Optional Equipment

Truck Mounted Units Stationary Units
5th Wheel Running Gear Electronic Scales
Molasses Sprayer System Hydraulic Drives
Left Hand Cross Feed
