SA扭力器

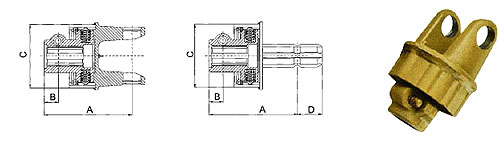

SUZUMI REF.  Max torque (Nm)  For PTO shaft  Spline (Female)  Spline (Male)  A
mm
 B
mm
 C
mm
 D
mm
SA1(SAS1)
 1SA1    300    Series1    13/8" Z6    —    125    24    95    —
 2SA1    300    Series2    13/8" Z6    —    130    24    95    —
 3SA1    300    Series3    13/8" Z6    —    132    24    95    —
 SAS1    300    —    13/8" Z6    —    136    24    95    38













SA2(SAS2)
 1SA2    600    Series1    13/8" Z6    —    144    24    95    —
 2SA2    600    Series2    13/8" Z6    —    149    24    95    —
 3SA2    600    Series3    13/8" Z6    —    152    24    95    —
 4SA2    600    Series4    13/8" Z6    —    157    24    95    —
 5SA2    600    Series5    13/8" Z6    —    161    24    95    —
 SAS2    600    —    13/8" Z6    13/8"Z6    157    24    95    38
